High Performance and reliability Hardware and Software Platforms

Leading 200G/400G hardware platform, smoothly upgrage to support 800G/slot,providing Tbit access capacity.

Abundant and Flexible sub-board and interfaces, including 100GE/50GE/40GE/25GE/10GE/GE/FE/E1 and CPOS interfaces.

Networking-processor-based and ACL-based implementation of non-blocking switching and forwarding.

All key components adopt redundancy design, providing the equipment level, the network level and the service level protection.

Powerful Routing and MPLS Processing Capability

Static routing protocol and dynamic routing protocol such as RIP/OSPF/IS-IS/BGP.

TCP/IP protocol includes ICMP/IP/TCP/UDP/ARP.

Supports LSP tunnel created via manual configuration or LDP or RSVP-TE protocol.

Abundant Multi-service Carrying Capacity

Abundant Layer 2 features, such as VLAN, QinQ and VXLAN.

Perfect MPLS VPN services include MPLS L2VPN and L3VPN.

Supports Inter-AS VPN Option A, Option B and Option C.

4-level hierarchical QoS to satisfy the requirements of different users and different levels of services.

ITU-T G.8275.1, IEEE 1588V2 and Ethernet clock to satisfy the requirements of MBH.

Meets carrier multicast requirements with multicast CAC, IPv6/IPv4 unicast/multicast, PSupports multicast routing and multicast fast convergence.

Supports Segment Routing and EVPN, simplify network deployment

Perfect Maintenance Management

FiberHome UNMM2000 management system support multi-language and GUI to enhance convenience and maintenance.

Support management, off-line control and QoS schedule of DHCP user, static user, L2VPN and L3VPN leased-line user.

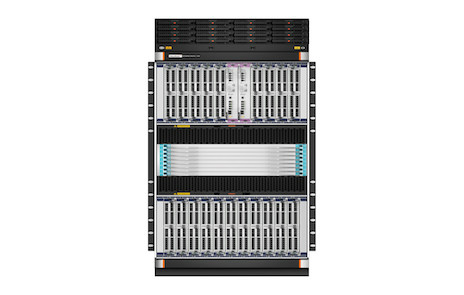

CiTRANS R8000E has the characteristics of flexible networking capability, perfect reliability design, high-degree of intelligence and multi-service protection ability. It is an ideal choice for 3G/LTE/5G mobile backhaul network, IP Metro and other IP network applications.
