Fengine S5800-X series gigabit switches (S5800-X) are next-generation Layer 2 and Layer 3 devices developed by FiberHome for service providers and enterprise networks. The S5800-X provides a large switching capacity and high-density GE ports to implement 10Gbit/s upstream transmissions. It can be deployed in various scenarios, such as convergence layer of large enterprise networks and campus networks, core layer of medium & small enterprise networks, and the leading-edge layer of MANs, as well as a desktop switch for terminal GE access. The S5800-X uses advanced reliability, security, and energy conservation technologies to help customers build networks with lower OPEX & CAPEX.
Small and medium-sized campus network construction needs to consider the normal operation of the
network bandwidth security, reliability, ease of use, management and maintenance, scalability and other factors.
Carrying a variety of services including office OA business, security business, broadcasting business, video conference and so on.
Fiberhome S5800-X series Gigabit routing switches, is for meet the multi-service access and high-density convergence to launch of
a new generation of Gigabit routing switches, with a wealth of Gigabit, Gigabit ports, rich three-tier agreement, a variety of protection
switching technology , In the small park as a core switch, to provide customers cost-effective solution.
|
Features |

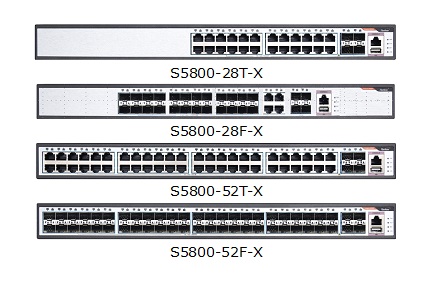

S5800-28T-X |
S5800-28F-X |
S5800-52T-X |
S5800-52F-X |
|
Ports |
24×10/100/1000Base-T port 4×1G/10GE SFP/SFP+ Port 1×USB port |
24×10/100/1000Base-X port 4×10/100/1000Base-T combo port 4×1G/10GE SFP/SFP+ Port 1×USB port |
48×10/100/1000Base-T port 4×1G/10GE SFP/SFP+ Port 1×USB port |
48×10/100/1000Base-X port 4×1G/10GE SFP/SFP+ Port 1×USB port |
|
Throughput |
96Mpps |
132 Mpps |
||
|
Switching capacity |
256 Gbps |
|||
|
VLAN |
4K VLANs; 1:1 & N:1 VLAN Mapping; QinQ, selective QinQ, 802.1Q, 802.1ad |
|||
|
Port trunk |
LACP; 8 trunk groups at most, up to 8 GE ports or 4 10GE ports in each group |
|||
|
MAC |
16K MAC; Static MAC; Dynamic MAC; Black-MAC |
|||
|
IP routing |
Static routing, OSPF |
|||
|
Multicast |
2K Multicast; IGMP snooping, IGMP filter, IGMP Proxy and IGMP fast leave; Multicast replication between VLANs |
|||
|
Reliability |
STP, RSTP, MSTP; ERPS (G.8032), R-Link protection, VRRP, Trunk, Redundancy power, BPDU Guard, BDPU Tunnel, Root Guard, Loop protection, BFD for static route, OSPF |
|||
|
IPV6 |
Neighbor Discovery; PMDU; IPV6 Ping, IPV6 Telnet, IPV6 ACL; MLD v1/v2; MLD Snooping, DHCPV6 Snooping; Dual Stack; RIPng, OSPFv3 |
|||
|
QoS/ACL |
Packet filtering at Layer 2 to Layer 4, packet filtering and classification based on 802.1p CoS, DSCP, IP Precedence, Interface, source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, Ipv6 traffic class, protocol type and VLAN ID |
|||
|
Time range ACL |
||||
|
Rate limiting with granularity at 64Kbps |
||||
|
Port-based traffic policing and one-rate two-color CAR |
||||
|
8 queues on each port |
||||
|
Flexible scheduling algorithms, including SP/PQ, WRR |
||||
|
WRED |
||||
|
Re-marking of the 802.1p priority and DSCP priority |
||||
|
Security |
User privilege management and password protection |
|||
|
DoS attack defense, ARP attack defense, IP source guard |
||||
|
Binding of the IP address, MAC address, interface |
||||
|
Port isolation |
||||
|
Blackhole MAC address entries |
||||
|
Limit on number of learned MAC addresses |
||||
|
802.1x authentication, RADIUS authentication |
||||
|
SSH v2.0, |
||||
|
CPU protection |
||||
|
Energy saving |
Dynamic fan speed adjusting |
|||
|
Management & maintenance |
Port mirroring based on physical port and VLAN, RSPAN (remote port mirroring), 1:1 and N:1 port mirroring |
|||
|
Configuration via CLI, Telnet, Console port, USB Port |
||||
|
SNMP v1/v2/v3, RMON; LLDP; Cluster network; Syslog, Traplog |
||||
|
Fengine Wview GUI management platform based on SNMP |
||||
|
Loading and upgrade via FTP, TFTP |
||||
|
Ethernet OAM |
||||
|
Port loopback detection |
||||
|
Operating environment |
Operation temperature: -20℃ to 65℃(long time), -30℃ to 70℃(short time) Relative humidity: 10%-90% (non-condensing) |
|||
|
Input voltage |
AC: Rated voltage range: 100V to 240V AC, 50/60Hz Maximum voltage range: 90V to 264V AC, 50/60Hz |
|||
|
DC: Rated voltage range: -48V to -60V DC Max voltage range: -36V to -72V DC |
||||
|
Dimensions (W×D×H) mm |
440×310×44 |
440×190×44 |
440×310×44 |
440×310×44 |
|
Power consumption |
<50 W |
<55 W |
<60 W |
<65 W |
|
Weight |
<4 kg |
<4 kg |
<4.5 kg |
<4.5 kg |
