AN5x16 OLT equipment is carrier-class 10 GPON central office equipment, which adopts industry-leading technology and supports full front card, front access design, and high-density XPON port cards. It supports GE/10GE/STM-1/E1 uplink interfaces, which can be shared on the same platform with GPON/10G PON/P2P for sustainable evolution to make the network construction more effective. Using high performance chips makes it cost-effective, green and network reliable.

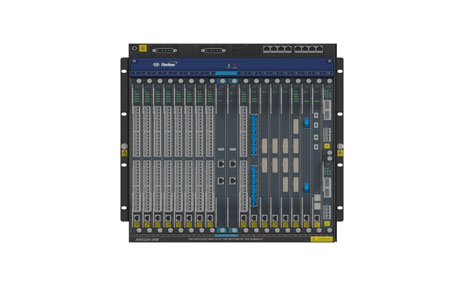

The AN5116-06B is a new intelligent carrier-class MSAN/GPON/10G PON integrated access product offered by FiberHome. It is large carrier-class central office equipment. It is being used and works together with the remote end ONUs (Optical Network Unit) as an office end OLTs (Optical Line Terminal) in MSAN/GPON/10G PON system. Besides, it supports integrated broadband / narrowband services, such as POTS/ADSL2+/ VDSL2/ VoIP/ TDM/ data/ IPTV/ CATV. It converges Layer 2 and Layer 3 data.
High capacity and Density carrier-class GPON platforms supporting 256 GPON ports or 64 XGPON ports, switch card capacity of 3.84T and backplane bus capacity of 5.12T
Support 6*GE /1*10GE + 4*GE/ 2*10GE + 2*GE/4*10GE（optical or electrical).
Support STM-1/E1 private uplink interface and up to 16×16GE downlink P2P interfaces.
It has capability to support split-ratio of 1:32/64/128 long haul transmission and CLASS C+ optical module.
Provide Internet/ Voice/ IPTV/ CATV/ TDM services.
Support IEEE 1588v2 protocol and 1PPS+TOD Clock interface.
Support OSPF, VRRP and RIP L3 protocols.
Unified platform of MSAN/GPON/10G PON/P2P for FTTX Smooth evolution.
Standard 19” inches cabinet supporting 16 service slots.
Full front card and front access design.
Support hot plug for all cards and PON modules.
Support redundancy error-check protection for services, controller and uplink cards.
End-to-end protection, uplink ports RSTP/LACP protection and downlink PON port millisecond level switch protection.
The overall power consumption is lower than the average industry level
Use the high performance and low power consumption chip.
8-level intelligent temperature control fan and support idle ports sleeping mode and energy saving.
The AN5116-06B is suitable for the application of FTTH / FTTB / FTTC / FTTM/ etc.. And it is usually placed in a residential community or a central office.

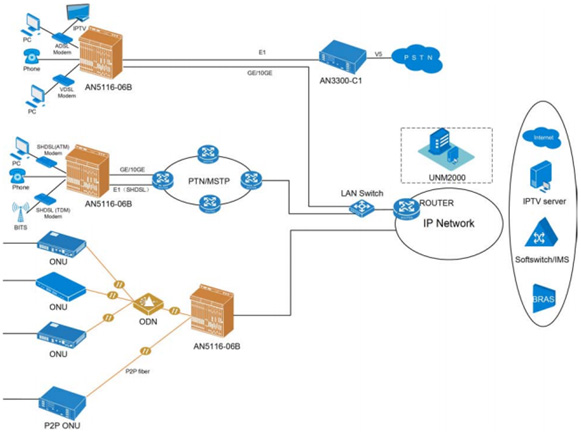

An illustration of the AN5116-06B network diagram is shown in Figure
Figure The AN5116-06B network diagram
