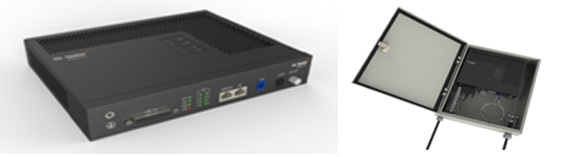

AN5172-8GR is an FTTC-type GPON optical network unit developed by FiberHome. It supports RPF (Reverse Power Feeding) via the DSL port of the PSE (Power Sourcing Equipment) on the user side. The AN5172-8GR can be used together with the GPON central office equipment developed by FiberHome to form a gigabit GPON system. It is mainly applied in scenarios such as outdoor DSL access and residential/building access.
Uplink: 1 GPON;
Downlink: 8 VDSL2;
Save: Waterproof and dustproof, Lightning protection, IP55 standard High;
QoS: Ensure delay & packet loss requirements using hierarchy QoS;
Plug and play: Offline provision, support remote configuration, upgrading and diagnosis;
Flexible: Suitable for outdoor application, support pole and wall installation;

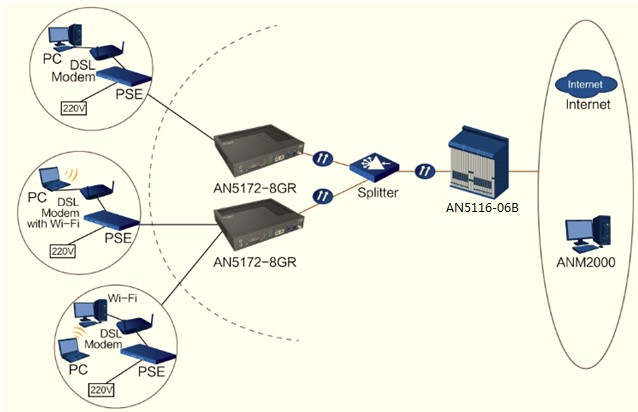

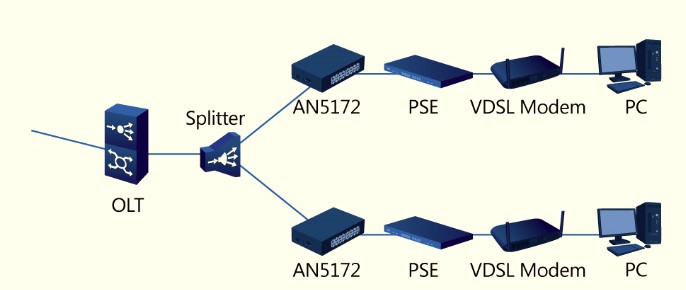

AN5172-8GR is mainly applied in the FTTC access scenarios. It obtains the feed from the user side PSE, and provides conventional data transmission services for the users. The AN5172-8GR is characterized by its adaptability to multiple outdoor installation scenarios. It can serve as the network access equipment in a field or at public locations (e.g. residential communities and buildings).
|
PON features |
Complied with ITU G.984 series of standards |
|
Broadband features |
VLAN number: 4K, QinQ, VLAN 1:1 and N: 1 translation Support dual management model based on DBA technology and priority All ports support L2 line rate forwarding. Supports eight priority queues at most. Supports the SP, WRR, and SP+WRR scheduling modes. ACL filtering |
|
Multicast features |
IGMP v2, IGMP Snooping Multicast program number：1024 |
|
Security features |
PPPoE+ and DHCP Option82 MAC/IP filter、binding function AES-128, Triple Churning Looping detection |
|
Maintenance features |
Support port state query, Support remote upgrading and remote monitoring |
|
Outdoor case size |
95mm×330mm×400mm (height×width×depth) |
|
Equipment size |
43.5mm×250mm×200mm (height×width×depth) |
|
Weight |
AN5172-8GR: 1.5kg. Outdoor case (empty): 4.6kg |
|
Uplink interface |
A GPON interface compliant with the ITU-T G.984 standard is provided. |
|
User interface |
An eight-channel DB25-type DSL interface is provided, which is adaptive to PTM-TC and ATM-TC. Supports the DSL Vectoring function. Supports the RPF (Reverse Power Feeding) function as specified in IEC 60950-1 Standard. |
|
Power supply mode |
RPF (Reverse Power Feeding): 60V |
|
Power Consumption |
<20W |
|
Working temperature |
-40℃～55℃ |
|
Storage temperature |
-55℃ to 125℃ |
|
Working humidity |
10% to 90% (no condensation) |
