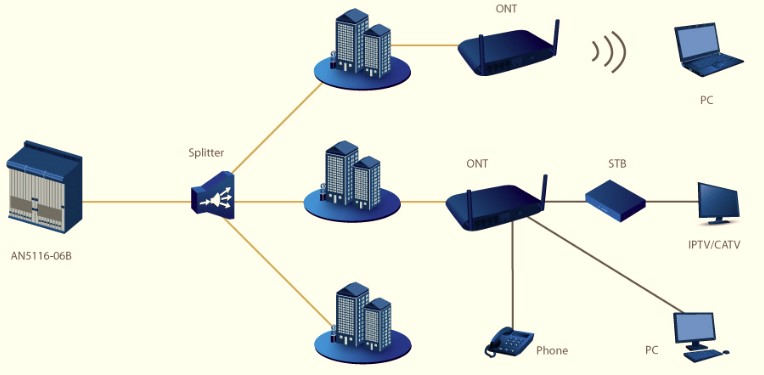

GPON ONTs series equipments are manufactured and developed by FiberHome for home and SOHO users used in FTTH solution. They are properly managed with features such as high-bandwidth, high-reliability, low power consumption and satisfy the user's triple-play requirements.
Products without Wi-Fi
|
Type |
AN5506-01-A |
AN5506-02-B |
HG6240A |
|
Diagram |
|
|
|
|
Dimension H/W/D(mm) |
23.5*80*80 |
25.5*112*112 |
32*170*130 |
|
NNI |
GPON |
GPON |
GPON |
|
UNI |
1*GE |
1*GE+1*FE+1*POT |
4*GE+2*POTS |
|
Power Supply |
AC: 220V |
AC: 220V |
AC: 220V |
|
|
DC: 12V/0.5A |
DC: 12V/1A |
DC: 12V/1A |
|
Power Consumption |
≤4W |
≤5W |
≤8W |
|
Operating Temperature |
-5°C~45°C |
-5°C~45°C |
-5°C~45°C |
Products with Wi-Fi
|
Type |
HG6543C |
HG6243C |
HG6245D |
HG6143D |
HG6245P |
AN5506-04-FS |
AN5506-04-FAT |
HG6245N |
|
Diagram |
|
|
|
|
|
|
|
|
|
Dimension H/W/D(mm) |
32*156*115 |
36.8*204*149 |
36.8*204*149 |
36.8*204*149 |
36.8*204*149 |
211*36*154 |
37*252*178 |
37*252*178 |
|
NNI |
Gpon |
Gpon |
Gpon |
Gpon |
Gpon |
Gpon |
Gpon |
Gpon |
|
UNI |
2*GE+2*FE+1*POTS+WiFi |
4*GE+2*POTS+WiFi |
4*GE+2*POTS+WiFi |
4*GE+1*POTS+WiFi |
4*GE+2*POTS+WiFi |
4*GE+2*POTS+WiFi |
4*GE+2*POTS+WiFi |
4GE+2*POTS+WiFi |
|
WiFi |
2.4GHz(11n2*2) |
2.4GHz(11n2*2) |
2.4GHz(11n2*2) 5GHz(11ac2*2) |
2.4GHz(11n2*2) 5GHz(11ac2*2) |
2.4GHz(11n2*2) 5GHz(11ac3*3) |
2.4GHz(11n2*2) |
2.4GHz(11n3*3) 5GHz(11ac3*3) |
2.4GHz(11ax3*3) 5GHz(11ax3*3) |
|
Power Supply |
AC:220V DC:12V/1A |
AC:220V DC:12V/1.5A |
AC:220V DC:12V/1.5A |
AC:220V DC:12V/1.5A |
AC:220V DC:12V/2A |
AC:220V DC:12V/1.5A |
AC:220V DC:12V/2.5A |
AC:220V DC:12V/2.5A |
|
Power Consumption |
≤10W |
≤12W |
≤17W |
≤17W |
≤18W |
≤12W |
≤18W |
≤24W |
|
Operating Temperature |
5°C-45°C |
-5°C~45°C |
-5°C~45°C |
-5°C~45°C |
5°C~45°C |
-5°C~45°C |
-5°C~45°C |
5°C~45°C |
Products with CATV ports
|
Type |
HG6244C |
HG6544C |
HG6249A |
|
Diagram |
|
|
|
|
Dimension H/W/D(mm) |
42*211*154 |
42*211*154 |
42*211*154 |
|
NNI |
GPON |
GPON |
GPON |
|
UNI |
4*GE+2*POTS+1*CATV+WiFi(2.4GHz 11n2*2) |
2*GE+2*FE+1*POTS+1*CATV+WiFi(2.4GHz 11n2*2) |
4*GE+2*POTS+1*CATV |
|
Power Supply |
AC: 220V DC: 12V/1.5A |
AC: 220V DC: 12V/1A |
AC: 220V DC: 12V/1.5A |
|
Power Consumption |
≤11W |
≤9W |
≤11W |
|
Operating Temperature |
-5°C~45°C |
-5°C~45°C |
-5°C~45°C |
