With its strong function of security against, professional VPN service, intelligent network feature, Fengine FSG10000 series security gateway is the next generation firewall facing multi-core architecture of complex application scenarios as data center and large-scale zone. FSG10000 uses the technology of parallel flow filter engine to integrate security of network layer and application layer, match all security strategies at one time without a de-cline in performance or increase of network delay.

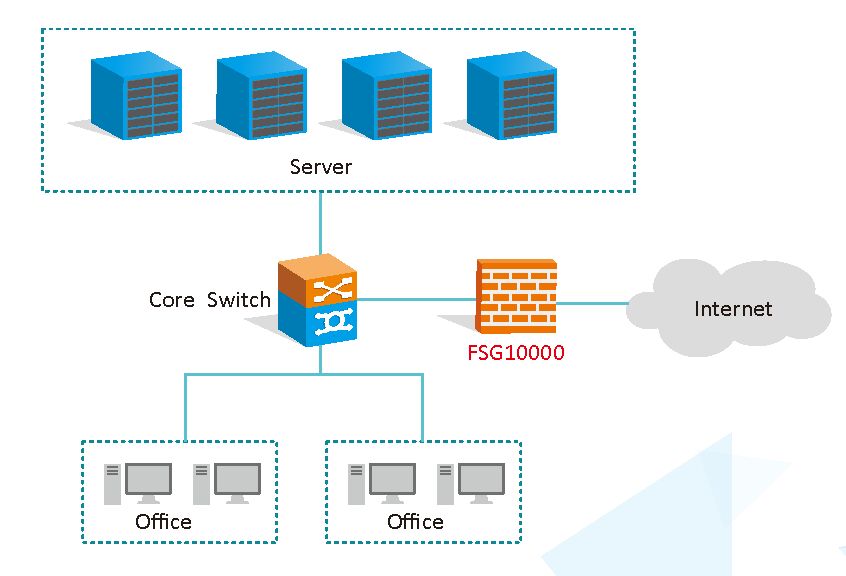

FSG10000 can be used with FiberHome switches to improve users’ network performance and provide strong guarantee of safety construction, being an ideal choice of network high-performance security gateway for industry and operator customers.
FiberHome FSG10000 series are driven by advanced distributed
architecture and multi-core processors to provide high speed stable business processing capabilities.
FiberHome FSG10000 series support key component redundancy,
hot plug and double machine hot standby based on state, ensuring the
continuity of original network connection after equipment failure, realizing real seamless switching.
On the basis of traditional firewall technology, FiberHome FSG10000 series add supporting for
the application layer, embedded rich filtering and control function of application level,
and can support IPS, anti-virus, flow control function, providing real-time update of professional char-acteristics
database to achieve fine-grained security management. FSG10000 uses depth recognition to
realize more accurate security prevention and guard against various attacks. Keyword filtering, and the URL
database based on more than 20 million domain can help administrators to easily set blocking access to web pages, control access to offensive websites.
FSG10000 supports for viruses, Trojans, worms, backdoor malicious programs
and HTTP\FTP\SMTP\POP3\IMAP mainstream application protocol to protect the safety of user's network system.
With arrival of information age, the enterprise implements informatization for convenience and also
brings a huge challenge on its information security at the same time. FiberHome FSG10000 series security
gateway has the strong function of security against, professional intrusion detection mechanism to provide a strong security for users.

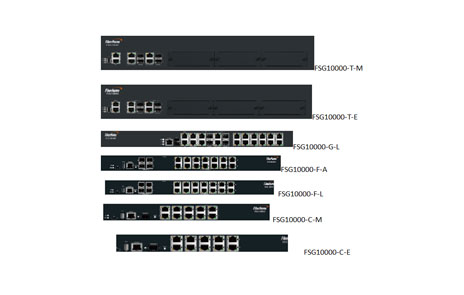

| Model | FSG10000-T-M | FSG10000-T-E | FSG10000-G-L |
| Fixed interface | 4xGE Combo | 4xGE Combo | 4xGE Combo ports, 16x10/ 100/1000 Base-T RJ45 ports |
| Service slots | 3 service slots for 4-port GE combo interface card,1-port SFP and 10GE service card,4-port SFP and 10GE service card |
N/A | |
| Measurement (WxDxH, mm) |
440x500x88 | 440x500x88 | 440x400x44 |
| Operating environment |
Operation temperature: 0℃ to +45℃(32°F to +113°F) Humidity:10% to 95% |
||
| Power consumption |
≤300W typical | ≤300W typical | ≤95W typical |
| Weight | ≤11kg | ≤11kg | ≤7.3kg |
| Model | FSG10000-F-A | FSG10000-F-L | FSG10000-C-M | FSG10000-C-E |
| Fixed interface | 4xGE Combo, 10x10/100/1000 Base-T (8xPOE) |
4xGE Combo, 10x10/100/1000 Base-T |
1x100/1000 Base-X SFP, 10x10/100/1000 Base-T (4xPOE) |
1x100/1000 Base-X SFP, 10x10/100/1000 Base-T |
| Measurement (WxDxH, mm) |
440x263x44 | 440x263x44 | 320x205x44 | 320x205x44 |
| Operating environment |
Operation temperature: 0℃ to +45℃(32°F to +113°F) Humidity:10% to 95% |
|||
| Power consumption |
≤120W+25W typical | ≤25W typical | ≤60W typical (POE:65w) |
≤25W typical |
| Weight | ≤2.9kg | ≤2.9kg | ≤1.9kg | ≤1.9kg |
| Basic | application-level protocol identification, ASPF, NAT, Portal, Radius, TACACS | |||
| IPv4 routing Protocol |
Static route, RIP, OSPF, BGP, IS-IS, PBR, routing strategy | |||
| IPv6 routing Protocol |
RIPng, OSPFv3, BGP4+, IPv6 IS-IS | |||
| Intrusion detection defense |
Land attack, Ping of Death, Tear Drop a variety of network applications, virus attack, identify detection of unknown traffic detection as the application, application behavior, keyword rules |
|||
| Anti-DoS attack | SYN flood, ICMP flood | |||
| Load balancing | load balancing based on bandwidth link, priority link and interface link | |||
| Virus protection | detection based on virus features, manual and automatic upgrade virus database, support message flow processing mode HTTP, FTP, SMTP, POP3 Virus type detected: Backdoor, Email-Worm, IM-Worm, P2P-Worm virus log and report |
|||
| VPN | AH, ESP, IKEv2, MDS, SHA-1, IKE, NAT, redundancy VPN gateway L2TP VPN, GRE VPN, SSL VPN |
|||
| QoS | Bandwidth usage limit, network access control application, URL filter, network application filtering | |||
| Security strategy | configuration of priority, interface, security domain name package filtering strategy to add, insert, delete, and support default policy between domain policy log, packet filter based on state |
|||
