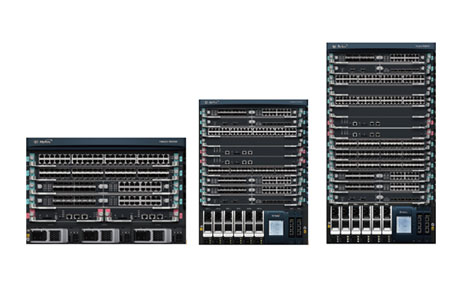

FR8600 series of high-end router is a high-performance router for WAN Wuhan flames,metro core,aggregation nodes and other application scenarios introduced.
FR8600 series of products using high-end router forwarding and non-blocking switch-ing technology is based on the distributed hardware, has a good line-rate forwarding performance, excellent scalability, perfect QoS mechanism and strong operational capacity, performance excellence.
FR8600 series of high-end router products, with its powerful processing capability and scalability, feature-rich software and hardware modules, can fully meet the electricity,broadcasting, government, energy, financial, military, carriers, enterprises and other users of high-performance core aggregation applications.
FR8600 using forwarding plane separation and three engine design, forward,
and high-capacity non-blocking switching technology based on high-performance
multi-core processors and a distributed network processor hardware to ensure
high processing performance and flexible system scalability.
FR8600 provides a wealth of RIP / RIPng, OSPF / OSPFv3, BGP / BGP4 +, IS-IS / IS-ISv6
routing protocols to meet user demand for multi-service bearer.
FR8600 has a perfect dual-stack IPv6, NAT-PT, 4over6,6to4, IPSec v6, GRE, ISTAP, IPv6 QoS
capabilities that enable IPv6 transition under various evolution scenarios, while enhancing network
scalability to adapt traditional business and access to new business.
FR8600 offer perfect queue scheduling, congestion avoidance, traffic policing and shaping QoS mechanism;
supports comprehensive MPLS capabilities, support for two, three VPN, MPLS TE functions. Effectively ensure
network bearer QoS requirements to meet quality of service requirements of different users.
With a powerful PIM-SM / DM, DVMRP, MVPN processing capabilities such as multicast,
flexible carry a variety of services to meet the needs of all sizes of multicast services.
FR8600 with hierarchical user authentication and authorization capabilities (local, Radius, etc.),
and fully guarantee the safe operation of equipment on the network.
Based L2 / L3 / L4 ACL filtering mechanism, and supports application identification and control Layer7;
the switch ports support port, MAC, VLAN, IP and other diverse information bound; comprehensive VPN tunneling protocols such as IKE,
IPSec, DMVPN, EZVPN, MVPN, L2TP, PPTP,
GRE, SSL VPN, to provide strong security for network system.
Support uRPF, Anti-DoS, 802.1X and other value-added security features, effectively preventing network attacks.
Power industry to build and operate the power grid as the core business,
covering a wide range of power supply population, the main application
business for data collection, intelligent interaction, analysis and processing,
security access and management capabilities, and promote the Internet of things,
large data and other new technologies application. Fiberhome FR8600 series backbone
core router products are based on distributed hardware forwarding and non-blocking switching
technology, with good wire-speed forwarding performance, excellent scalability, improve the
Qos mechanism and strong business processing capabilities, but also provide hardware,
software And other aspects of carrier-class reliability, to ensure high reliability of the network.
| Feature | FR8600-04 | FR8600-08 | FR8600-12 |
| Master slots | 2 | 2 | 2 |
| Service slots | 4 | 8 | 12 |
| Switching capacity | 5.6Tbps | 22.5Tbps | 33.8Tbps |
| Packet forwarding rate | 1920Mpps | 3840Mpps | 5760Mpps |
| Layer 2 features | PPP, Multilink-PPP, PPPoE(Client/Server), FR, FR-Switch, Support HDLC, Ethernet, 802.1Q End, QinQ End, ARP, Proxy ARP, free ARP, STP/RSTP/MSTP, Broadcast Storm Control, Port Mirroring |
||
| Routing Protocol | static routes, direct routes, default routes, RIPv1/v2,OSPFv2,BGPv4,IS-IS, PBR, Load balancing | ||
| IP Services | ICMP,TCP,UDP,IP Option, NAT,PAT,Port-MAP,Private-Service,DHCP Client/Serv/Relay, NetFlow,IP Accounting |
||
| IP Applications | Ping,TraceRoute,Nslookup, DNS,DNS host,DNS Proxy,DDNS(PeanutHull/DynDNS/CTC), Helper-Address,UDP Helper,Keepalive, TFTP Client/Serv,FTP Client,SNTP,job/schedule |
||
| Multicast | IGMP,IGMP Snooping,PIM-DM,PIM-SM,DVMRP | ||
| IPV6 | IPv6 ND,IPv6 PMTU,IPv6 FIB,IPv6 ACL, IPv6 QoS, IPv6 Transition: NAT-PT, IPv6 tunnel, 4over6, IPv6 tunnel：IPSec v6,GRE,6to4,ISATAP, IPv6 routing: IPv6 static routing, RIPng, OSPFv3, IS-ISv6, BGP4 + |
||
| QoS | Five groups based on IP source, IP, DSCP, MAC, VLAN flow classification, etc, FIFO,PQ,CQ,WFQ,CBWFQ, WRED/RED,GTS（Generic Traffic Shaping), RSVP,GBSC,Layer7 filter |
||
| Security Feature | AAA, Enable,Local,Radius,Tacacs+ , PAP,CHAP,MS-CHAP,IP ACL,IMP filter,Fast-Access,NAT, ASPF State detection, SYN flood,UDP flood,ICMP flood Protect, ARP Attack Protection,ARP-SCAN,DHCP-Snooping a variety of network packet attack defense, including Ping of Death, Tear-drop, a variety of network packet attack defense, including Ping of Death, Tear |
||
| VPN tunnel | IKE,IPSec,DMVPN,EZVPN,MVPN, L2TP,PPTP,GRE,SSL VPN, VPN nesting | ||
| MPLS | AToM,VPLS,MP-BGP,VRF, L2VPN,L3VPN,MPLS TE | ||
| Reliability | Interface Backup mode, Floating Support route backup lines, VRRP, for load balancing and backup, Fast Link Support BFD detection, and can with RIP, OSPF, BGP, MPLS, VRRP achieve linkage to achieve fast switching and routing links |
||
| Management | SNMP, MIB, SYSLOG, RMON, HTTP management,CLI management, file system management, Console port, Telnet / VTY, SSH login, etc |
||
| Operating environment |
Operation temperature: 0℃ to +40℃(32°F to +104°F) Humidity:10% to 90% |
||
| Input voltage | Worldwide ranging AC: 110V to 260V,50 to 60Hz Worldwide ranging DC: Max voltage range: -48V: -38.4 to -57.6V,-60V: -48V to -72V |
||
| Chassis dimensions(mm) | 440×490×290 | 440×480×580 | 440×480×710 |
| Power consumption | ≤1200W typical | ≤2200W typical | ≤3000W typical |
| Weight | ≤25kg | ≤45kg | ≤75kg |
