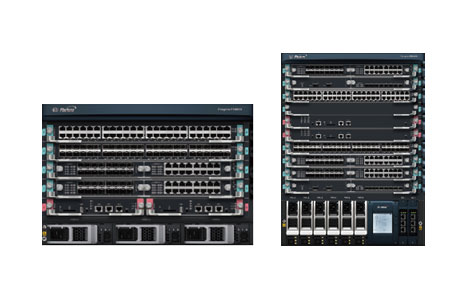

Multi-core-based distributed processing architecture Gigabit high-end routers.Mainly used in various large-scale network core, aggregation and formation of MAN operators, government, industry and so on.
FR7600 hardware platform not only has a large-capacity switching and routing capa-bilities, providing comprehensive routing, switching, security, MPLS, IPv6, QoS, multi-cast and other features, but also with Serial, E1, GE, 10GE, POS / CPOS series a variety of high-capacity interface aggregation capabilities. FR7600 also with MIP multiservice router line card expansion modules backward compatibility at low speed, with a pow-erful configuration flexibility.
FR7600 carrier-class reliability, with full wire-speed forwarding capability, perfect QoS (Quality of Service) management mechanism, rich business processing capability and good scalability advantages. At the same time, the product has a strong Layer 2 switching, IP routing and forwarding EoMPLS transmission capacity. Supports rich IP-level services, can provide broadband Internet access, triple play, IP private line,VPN and other services.
Through a dedicated secure and reliable processing unit, FR7600 provides fine con-trol and end to end service assurance, guarantee bearer service without interruption,to ensure the smooth running of a multi-user multi-service.
FR7600-end router with my company's switch series devices composite applications,work together to build a structured Ethernet, providing customers with a more abun-dant service features.
FR7600 using forwarding plane separation and three engine design, forward,
and high-capacity non-blocking switching technology based on high-performance
multi-core processors and a distributed network processor hardware to ensure high
processing performance and flexible system scalability.
FR7600 main engine, power supply, cooling system and so supports 1 + 1 redundant equipment,
to achieve seamless switching system to provide users with carrier-class reliability.
FR7600 provides a wealth of RIP / RIPng, OSPF / OSPFv3, BGP / BGP4 +, IS-IS / IS-ISv6
routing protocols to meet user demand for multi-service bearer.
FR7600 has a perfect dual-stack IPv6, NAT-PT, 4over6,6to4, IPSec v6, GRE, ISTAP, IPv6 QoS
capabilities that enable IPv6 transition under various evolution scenarios, while enhancing network
scalability to adapt traditional business and access to new business.
With a powerful PIM-SM / DM, DVMRP, MVPN processing capabilities such as multicast,
flexible carry a variety of services to meet the needs of all sizes of multicast services.
Power industry to build and operate the power grid as the core business,
covering a wide range of power supply population, the main application
business for data collection, intelligent interaction, analysis and processing,
security access and management capabilities, and promote the Internet of things,
large data and other new technologies application. Fiberhome FR8600 series backbone
core router products are based on distributed hardware forwarding and non-blocking switching
technology, with good wire-speed forwarding performance, excellent scalability, improve the
Qos mechanism and strong business processing capabilities, but also provide hardware,
software And other aspects of carrier-class reliability, to ensure high reliability of the network.
| Feature | FR7600-04 | FR7600-08 |
| Master slots | 2 | 2 |
| Service slots | 4 | 8 |
| Backplane capacity | 2.8Tbps | 11.2Tbps |
| Switching capacity | 2.8Tbps | 11.2Tbps |
| Packet forwarding rate | 960Mpps | 1920Mpps |
| Layer 2 features | PPP,Multilink-PPP,PPPoE(Client/Server),FR,FR-Switch ,HDLC, Ethernet,802.1Q End,QinQ,End,ARP,Proxy ARP, free ARP,STP/RSTP/MSTP,Broadcast Storm Control, Port Mirroring | |
| Routing protocol | static routes, direct routes, default routes,RIPv1/v2, OSPFv2, BGPv4, IS-IS, PBR | |
| IP Services | ICMP,TCP,UDP,IP Option, NAT,PAT,Port-MAP,Private-Service, DHCP Client/Serv/Relay, NetFlow、IP Accounting |
|
| IP Applications | Ping,TraceRoute,Nslookup,DNS,DNS host,DNS Proxy,DDNS(PeanutHull/DynDNS/CTC),Helper- Address,UDP Helper,IP unnumber,DDR,Keepalive,TFTP Client/Serv,FTP Client,job/schedule |
|
| Multicast | IGMP,IGMP Snooping, PIM-DM,PIM-SM, DVMRP | |
| IPV6 | IPv6 ND,IPv6 PMTU,IPv6 FIB,IPv6 ACL,IPv6 QoS,IPv6 Transition: NAT-PT, IPv6 tunnel, 4over6 IPv6 tunnel：IPSec v6,GRE,6to4,ISATAP,IPv6 routing: IPv6 static routing, RIPng, OSPFv3, IS-ISv6, BGP4 + |
|
| QoS | Five groups based on IP source, I , etc, FIFO, PQ, CQ, WFQ, CBWFQ, WRED/RED, GTS（Generic Traffic Shaping）, RSVP, GBSC, Layer7 filter |
|
| Security features | AAA, Enable, Local, Radius, Tacacs+, PAP, CHAP, MS-CHAP, IP ACL, IMP filter, Fast-Access, NAT, ASPF State detection, SYN flood, UDP flood, ICMP flood Protect, ARP Attack Protection, ARP-SCAN, DHCP-Snooping, a variety of network packet attack defense, including Ping of Death, Tear-drop, Land-Based, WinNuke, PingSweep, ARP attacks, IP-Spoofing, etc. |
|
| VPN tunnel | IKE, IPSec, DMVPN, EZVPN, MVPN, L2TP, PPTP, GRE, SSL VPN, VPN nesting | |
| MPLS | AToM, VPLS, MP-BGP, VRF, L2VPN, L3VPN, MPLS TE | |
| Reliability | Interface Backup mode, Floating Support route backup lines, VRRP, for load balancing and backup, Fast LinkSupport BFD detection, and can with RIP, OSPF, BGP, MPLS, VRRP achieve linkage to achieve fast switching and routing links |
|
| Management | SNMP, MIB, SYSLOG, RMON, HTTP management, CLI management, file system management,Console port, Telnet / VTY, SSH login, etc. |
|
| Operating environment |
Operation temperature: 0℃ to +40℃(32°F to +104°F) Humidity:10% to 90% |
|
| Input voltage | Worldwide ranging AC: 110V to 260V,50 to 60Hz Worldwide ranging DC: Max voltage range: -48V: -38.4 to -57.6V, -60V: -48V to -72V |
|
| Chassis dimensions(mm) | 440×480×290 | 440×480×580 |
| Power consumption | ≤800W typical | ≤1600 typical |
| Weight | ≤25kg | ≤45kg |
