FiberHome FR2600 series are the next-generation multiservice switching router plat-forms, which have adopted a complete set of design solutionFs in which a 64-bit multi-core processor, a gigabit switching chip and FPGA are exquisitely integrated so that they have excellent performances such as a layer-3 forwarding rate of 2Mpps.
FiberHome FR2600 series provide rich software functions such as routing, switching,safety, VPN, voice and wireless function, making themselves a real multiservice unified Platform.
With their powerful processing ability and expansibility, varied software functions and hardware modules, FiberHome FR2600 series can meet different networking require-ments of government, financial institutions, military, operators or enterprises..
FiberHome FR2600 series are driven by the 64-bit dual-core processor,
the private gigabit ASIC switching chip and FPGA components, enabling the
whole hardware platform of the whole router to run on the hi-speed Ethernet frame.
This innovative design attributes FiberHome routers with an innate extra powerful processing ability,
provides a guarantee to the upper-layer software functions.
This series supports flexible ACL firewall filtration technology,
the NAT technology for network security, multiple VPN technologies
such as IPSec/L2TP/PPTP/GRE, and multiple security technologies
such as AAA, Radius, TACACS+, PAP/CHAP for access authentications.
The routers support the link-layer protocols such as FR, PPP, HDLC,
and routing protocols includes static routing, RIP. OSPF, BGP,
ISIS and the policy route, so the routers can interconnect the equipment
of the main manufacturers in this industry. Furthermore, the supports the integration
of multiple services like routing, switching, security, so they can meet the requirements of
complicated network establishment.
FiberHome routers also support MPLS and MPLS L2/L3 VPN for transparent Ethernet services for interconnection.
And IPv6 forwarding, routing and IPv6 multicast as well as dual stacking features are embedded for smooth evolution of IPv6 networks.

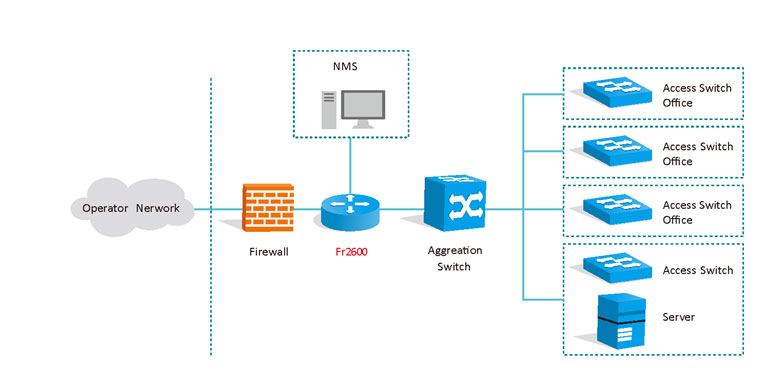

Enterprise office network needs to realize the sharing of resources within the enterprise,
to provide management application system, enterprise office automation, access Internet,
cyber source sharing network, built at the site of the host company, provide a publicity information platform,
publicize corporate image to the outside world. The FR2600 Series Router with flexible network scalability,
high bandwidth utilization, at the same time with the application of network security strategy rich,
convenient network management of enterprises, improve enterprise network security.

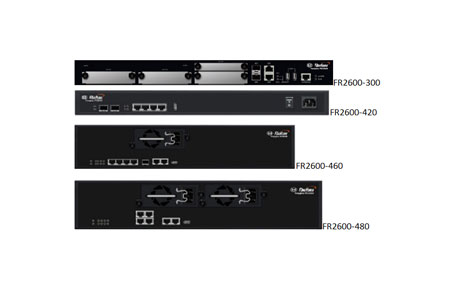

| Feature | FR2600-300 | FR2600-420 | FR2600-460 | FR2600-480 |
| Extension slots | 3 | 6 | 10 | 12 |
| Standard interfaces(RPU) | 2xGE Combo,4x10 /100/1000 Base-T |
2xGE Combo,1x10 /100/1000 Base-T |
1xGE Combo,3x10/100/1000 Base-T 4x10/100/1000 Base-T |
|
| Extension cards | 2 FRM slots | 4 FRM slots 2 FRC slots |
4 FRM slots 2 FRC slots |
4 FRM slots 6 FRC slots 2 Power slots |
| Forwarding rate | 2Mpps | 4Mpps | ||
| SDRAM | 256M(max.1G) | 512M（max.1G） | ||
| Flash | 32M | |||
| LAN protocols | ARP, agent ARP, free ARP | |||
| MAN protocols | PPP, Multilink-PPP, PPPoE(Client/Serv),Frame Relay,FR Switch,HDLC | |||
| Unicast routing | Static route,directly-connected route and default route,RIPv1/v2,OSPFv2,BGPv4,IS-I,PBR policy routing |
|||
| Multicast routing | IGMP,PIM-DM, PIM-SM | |||
| IP function | ICMP,TCP,UDP,IP Option,NAT,PAT,Port-MAP,Private-Service, Ping,TraceRoute,Nslookup,IP ACL,IMP Filter,Fast-Access,DHCP Client/Serv/Relay, DNS,DNS host,DNS Proxy,DDNS(PeanutHull/DynDNS/CTC) Helper-Address,UDP Helper,IP Unnumbe,Keepalive,NetFlow,IP Accounting, TFTP Client/Serv,FTP Client,SNTP |
|||
| MPLS | VPLS,MP-BGP,VRF,L2VPN,L3VPN,MPLS TE | |||
| IPv6 | IPv6 ND,IPv6 PMTU,IPv6 FIB,IPv6 ACL,IPv6 (IPv6 PhaseII authentication),IPv6 QoS,IPv6 transition: NAT-PT,IPv6tunnel,4Over6,IPv6 tunnel:IPSec v6,GRE,6to4,ISATAP,IPv6 route: IPv6 static route, RIPng, OSPFv3, IS-ISv6, BGP4+ |
|||
| Backup function | interface backup,backup of the floating route of the line,E-Backup,Keepalive of Ethernet,VRRP,HSRP, bandwidth-based load bearing and backup,the flow-based load balance and backup |
|||
| BFD | the rapid link detection of BFD and working together with RIP, OSPF, BGP, MPLS and VRRP to realize the fast switchover of route and link |
|||
| QoS | FIFO,PQ,CQ,WFQ,CBWFQ,WRED/RED,GTS(Generic Traffic Shaping),RSVP | |||
| QoS | classification of ACL flows,classification of the IP Precedence flows,classification of DSCP flows,the 802.1P classification,GBSC,Layer7 Filter |
|||
| L2 Features | 802.1p CoS,802.1Q VLAN,802.1x,STP,RSTP,PVST,Keepalive,port mirror, broadcast/multicast storm limitation | |||
| Network security | AAA certification,enable, local, Radius and Tacacs+,PAP,CHAP,MS-CHAP,ACL,NAT,SYN flood,UDP Flood,ICMP Flood prevention,ARP attack prevention, ARP-Scan and DHCP snooping |
|||
| Management | SNMP,MIB,SYSLOG,RMON,HTTP | |||
| Maintenance | CLI management and sys-log,console/Telnet/VTY/SSH logon mode | |||
| Operating environment | Operation temperature: 0℃ to +50℃(32°F to +122°F) humidity:10% to 85% |
|||
| Input voltage | Worldwide ranging AC：110V to 240V Worldwide ranging DC：-36 V to -72V |
|||
| Dimensions(mm) | 443x375x44 | 443×425×44 | 443×425×88 | 443x425x88 |
| Power consumption |
≤40W typical | ≤70W typical | ≤180W typical | ≤180W typical |
| Weight | ≤5kg | ≤8.5kg | ≤13kg | ≤18kg |
