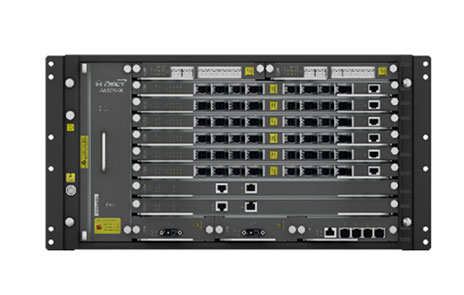

The AN5516-06 is a MSAN / GPON integrated access product with intermediate capacity offered by FiberHome. It is compact carrier-class central office equipment. It caters for the requirements on networking for FTTH, FTTB, base station backhauling and private line services. It supports multiple services such as Vo IP, TDM, data, IPTV and CATV to meet the requirement of Triple-play. In addition, it is used together with the remote end ONU forming a complete convergence layer function.
Suitable for medium-sized density equipment users
Dimensions (mm) 530W/265H/230D
Total Slot: 10
Service Slot: 6
Switch card capacity: 976G
Backplane bus capacity: 1.92T
Support 96 PON high-density service card
Unify platform of MSAN/DSLAM/EPON/GPON/10G PON/P2P
Unify software and interface card sharing with AN5116-06B

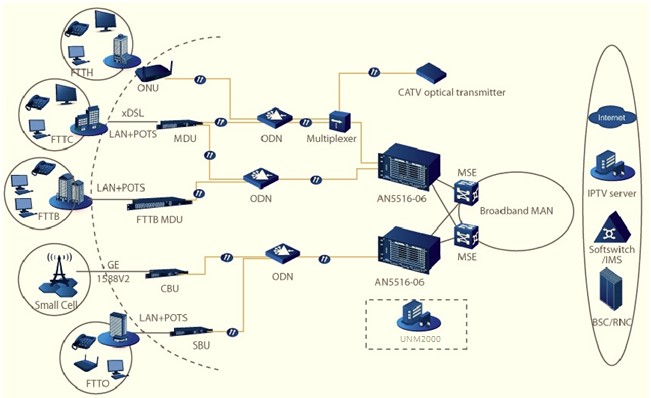

The AN5516-06 is suitable for FTTH / FTTB/ FTTC application. It is usually placed in a residential community or a central office. An illustration of the AN5516-06 network diagram is shown in Figure.
