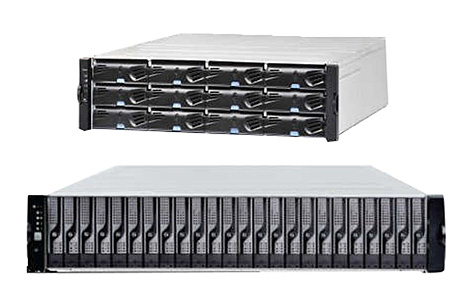

The FitStor D2000 series is the most advanced entry-level product range from FiberHome. It delivers powerful performance, wide scalability, and enterprise data services. Those include SSD Cache, automated storage Tiering, remote replication, and many others. The series is ideal for SAN, IP SAN, and DAS deployments with the flexibility of hybrid host interfaces and modular hardware. With uncompromising quality and reliability, these complete systems place advanced enterprise-class capabilities and services within convenient and affordable reach of small to medium businesses and enterprises.
Up to 1,300K IOPS accelerate all storage related operations
Massive storage throughput of up to 11,000MB/s read and 5,500MB/s write 40% over FitStor D1000 series
Accelerated read performance for hot data
Up to four SSDs per controller
Large SSD cache pool capacity: up to 3.2TB
Optional 2-level/4-level automated storage Tiering leverages the advantages of different storage media, including SSDs for high performance
Optional secure remote replication backs up data to offsite locations to ensure disaster recovery readiness
Compatible with self-encrypting drives (SED)
Snapshot, volume copy/mirror, thin provisioning and more.
12Gb/s SAS, 16Gb/s FC, and 10Gb/s iSCSI available
Systems ship with four 1Gb/s iSCSI ports per controller
Single or dual controllers
Hybrid hosts for SAN/IP SAN and DAS in one
Converged host board with 3 connectivity options to choose from (16Gb/s FC, 8Gb/s FC, and 10Gb/s iSCSI SFP+)
Up to 436 drives via JBOD expansion
JBODs available in diverse form factors
Support for high density 4U 60-bay JBOD expansion
Intuitive SANWatch and RAIDWatch interfaces
Command line interface customization
User friendly yet sophisticated UI with full access to features
| Form factor | 2U 12-bay LFF,3U 16-bay LFF, 2U 24-bay SFF,2U 24-bay LFF |
| Storage controller | Single or Dual-redundant |
| Host connectivity (per controller) | 4 x 16Gb FC ports 8 x 8Gb FC ports 4 x 10Gb iSCSI ports (RJ-45) 8 x 10Gb iSCSI ports (SFP+) 8 x 1Gb iSCSI ports 4 x 40Gb ISCSI (QSFP) 4 x 12Gb SAS ports |
| Onboard iSCSI ports (per controller) | 4 |
| Cache memory (per controller) | 2GB, 4GB, 8GB, 16GB,32GB |
| Max. drives (per system) | 24 |
| Max. drives (via expansion enclosures) | 1044 |
| SAS expansion por ts (per controller) | 1 x 12Gb/ SAS port |
| Cache backup techniques | Super capacitor + Flash module or BBU (hot-swappable) + Flash module |
| Supported drives | 2.5" SATA/SAS SSD 2.5" 10K/15K RPM SAS HDD 3.5" 7200 RPM NL SAS HDD 3.5" 7200 RPM SATA HDD |
| RAID configurations | RAID level 0, 1(0+1), 5, 6, 10, 50, 60 Up to 32 logical drives and 64 partitions per logical volume Up to 2048 LUNs |
| Data Service | Snapshot, Volume Copy/Mirror, Thin Provisioning, Self-encrypting drives, Remote Replication, Automated Storage Tiering, SSD Cache |
| Management | SANWatch management suite; Embedded RAIDWatch; Terminal via RS-232C Telnet/SSH |
| Notification | Email, Fax, LAN broadcast, SNMP traps, SMS |
| Regulatory | Safety : UL, BSMI, CB, EAC Electromagnetic Compatibility: CE, BSMI, FCC, KC, CCC |
