Fiberhome CiTRANS R8000 is Advanced Carrier-Class Router series. Focusing on the demand of the evolution of mobile backhaul network, Fiberhome introduces next generation router product based on distributed hardware processing platform and IP/MPLS software architecture which experiences the features of high capacity, high performance, high reliability and high scalability. Networking with CiTRANS R800 series, it could provide integrated solution to IP network and will provide strongfunctions of IP routing and multi-service access on IP/MPLS network, which work as a unified-platform to satisfy requirements of large core and aggregation nodes to support various application including 3G/4G/5G service, leased-line VPN, broadband access and Triple-Play for telecom services providers.

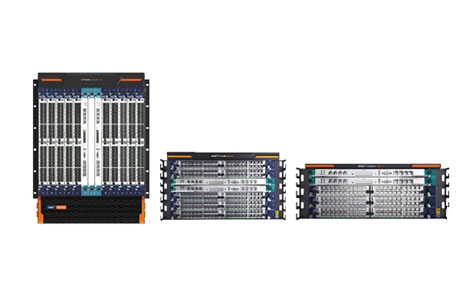

Fiberhome CiTRANS R8000 series, including CiTRANS R8000-10, CiTRANS R8000-5,CiTRANS R8000-3, meet the requirements of different application.
Leading 100/200GE hardware platform,providing Tbit access capacity
Networking-processor-based and ACL-based Implementation of non-blocking switching and forwarding
Support none-packet-loss with Large Buffer design.
Abundant and Flexible sub- board and interfaces including 100GE/40GE/10GE/GE/FE/E1 and CPOS and etc
Specification for L2 service such as L2 VLAN, QinQ and QinQ termination
Perfect VPN service including L2VPN, L3VPN, and excellent QoS function
Feature of PWE3, 1588v2 and Ethernet clock meeting requirements of MBH
Meet Carrier multicast requirements with Multicast CAC, IPv6/IPv4 unicast/ multicast, multicast routing, BGP, IGP and multicast fast convergence6
Static routing protocol such as RIP/OSPF/IS-IS/BGP
TCP/IP protocol including ICMP/IP/TCP/UDP/ARP
MPLS functions of forwarding, support LSP tunnel created via manualconfiguration or LDP or RSVP-TE protocol.
Fiberhome OTNM 2000 management system support multilanguage and GUI to enhance convenience and maintenance
Support management, off-line control and QoS schedule of DHCP user, static user, L2VPN and L3VPN leased-line user.

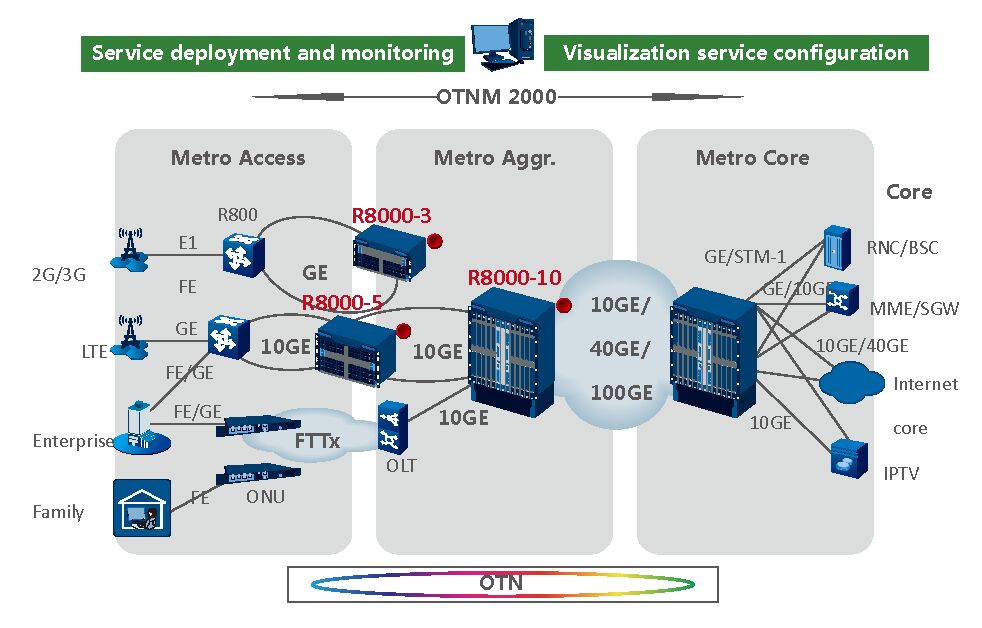

CiTRANS R8000 has the characteristics of flexible networking capability, perfect reliability design, high degree of intelligence and multi-service protection ability, and is the optimal choice for 3G/LTE/5G mobile backhaul, IP Metro and other IP network application.
| Throughput capacity | Non-blocking switching structure | |
| Interference type | 100GE /40GE/10GE/GE/FE/E1 and CPOS .etc | |
| Routing protocol | IPv4 static routing,OSPF,IS-IS,BGP-4,PIM, MSDP,MBGP | |
| IPv6 | Support IPv4 and IPv6 dual stack. Hardware-based IPv6 wire-speed forwarding processing | |
| Support routing protocols such as IPv6 static routing,OSPFv3,BGP4+,RIPng,IS-ISv6 | ||
| Support IPv6 neighbor discovery,PMTU discovery,TCP6,ping IPv6,Tracert IPv6,socket IPv6,TFTP | ||
| IPv6,IPv6 policy based routing and IPv6 NetStream .etc | ||
| Support IPv6 forwarding,6VPE/6PE and other techniques for evolution from IPv4 to IPv6 | ||
| Reliability | Important unit redundancy,including control, switching ,power supplier and fan | |
| Support status based Hot Swap, NSF,NSR | ||
| Support VRRP/BGP/OSPF/ISIS/TE LSP/LDP/LSP/TE/PIM BFD | ||
| Provide IGP/BGP/multicast fast routing convergence | ||
| IP/LDP/BGP/TE FRR function, BGP/ISIS automatic fast rerouting, ETH and IP link bundling | ||
| Support Rogue access point detection, Ddos,and control plane overload | ||
| Model | R8000-10 | R8000-5 | R8000-3 | |
| Throughput | 2Tbps | 500Gbps | 600Gbp | |
| slot number | 10 | 5 | 3 | |
| Synchronization capability | External clock interface:1PPS+TOD、CKIO，support synchronous Ethernet and 1588v2 time synchronization |
|||
| Input voltage | Worldwide ranging DC: -48±20%V | |||
| Power consumption | 2500W typical | 1200W typical | 900W typical | |
| Weight （empty chassis） | 32kg(70.5 lb) | 18kg(39.7 lb) | 10kg(22 lb) | |
| Environment requirement |
Temperature | Operating temperature：0℃ to 55℃ Operating temperature with guaranteed performance：5℃to 40℃ |
||
| Humidity | Operating humidity：5% to 90%（30℃） Operating humidity with guaranteed performance：10% to 85%（30℃) |
|||
| Safety standards | EN、UL、IEC .etc | |||
