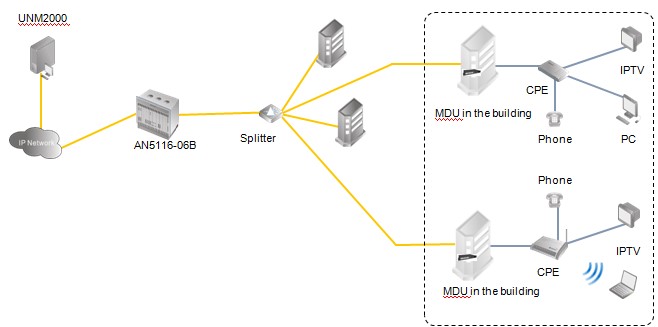

AN5506 series are industry-leading remote Multi Dwelling Units (MDUs), which provide broadband services and voice over IP service on fiber to the building (FTTB) network in GPON or XG-PON.AN5506/AN5600 series are box-type devices with 8/16/24-channel LAN ports or LAN+POTS, which are low power consumption, passive cooling design, high stability, eco-friendly and low energy consumption for family users as well as small to medium-scale enterprises with easy installation and maintenance.
Meet diverse FTTB network requirements with rich specifications
High performance IPTV service management such as strong service switching& packet forwarding capability. It also enables high integration with the feature of carrier-class multicast operation
Perfect voice features support basic services(voice/fax/modem) and supplementary services (three-way calling, call-waiting, call transfer and calling restriction)
Efficient management and maintenance supporting remote opening and remote patch upgrade facility and remote fault location
Passive cooling without any fans help to reduce power consumption and noise
Support two voice-channel wiring models of –hybrid I/O in different situations
Carrier-class reliability under consideration of flexible and reliable indexes in hardware of software with systems to ensure the operation of equipment
|
Type |
AN5506-06-EG |
AN5506-09 |
AN5506-07 |
AN5506-10 |
|
Diagram |
||||
|
Dimensions (W*D*H) |
440mm×190mm ×44mm |
440mm×(190/225)mm ×44mm |
440mm×(190/225)mm ×44mm |
440mm×(190/225)mm ×44mm |
|
User-side Interface |
4GE+8E1 |
8FE/8FE+8POTS |
16FE/16FE+16POTS |
24FE/24FE+24POTS |
|
Power Supply |
AC：220V DC: -48V |
AC：220V DC: -48V |
AC：220V DC: -48V |
AC：220V DC: -48V |
|
Power Consumption |
<25W |
<25W |
＜35W |
＜40W |
|
Lightning Prevention Capability |
Power module:6KV User-side Interface:4KV |
Power module:6KV User-side Interface: 4KV |
Power module:6KV User-side Interface: 4KV |
Power module:6KV User-side Interface: 4KV |
|
Operating Temperature |
-30℃～55℃ |
-30℃～55℃ |
-30℃～55℃ |
-30℃～55℃ |
|
Ambient humidity |
10% to 90%, non-condensing |
10% to 90%, non-condensing |
10% to 90%, non-condensing |
10% to 90%, non-condensing |
|
GPON/XG-PON1 |
ITU G.984-compliance/ITU G.987-compliance |
|
Broadband |
4K VLAN, supporting QinQ, VLAN 1:1 and N:1 translation |
|
16K MAC addresses |
|
|
Dual management modes based on DBA technology |
|
|
ACL rules filtering and unknown unicast, broadcast and multicast packets suppression |
|
|
Multicast |
IGMPv2 and IGMPv3 |
|
IGMP proxy and Snooping |
|
|
A maximum of 1024 configurable multicast |
|
|
Security |
PPPoE+ and DHCP option82 |
|
Triple churning algorithm to downstream data encryption |
|
|
Supports MAC/IP address filtering and binding functions |
|
|
Anti-DOS attack and firewall |
|
|
Line loopback detection |
|
|
Maintenance and management |
Remote upgrade and monitoring |
