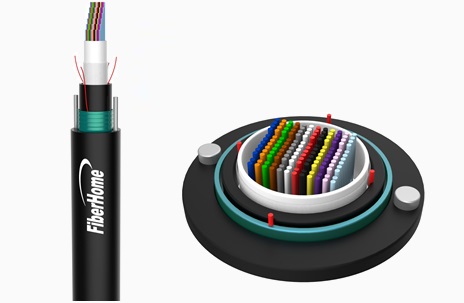

The fiber ribbons are positioned in the loose tube. The tube is made of high modulus plastics (PBT) and filled with water resistant filling gel. The corrugated steel tape is longitudinally applied over the loose tube, polyethylene (PE) is extruded as inner sheath, then corrugated steel tape are longitudinally applied over the inner sheath, and combined with a durable PE outer sheath. Two parallel steel wires are embedded in two sides of PE outer sheath.
Loose tube: PP or other materials available
Water blocking materials for loose tube: water blocking yarn available
Water blocking materials for cable core: cable filling compound available
Outer sheath: Anti-termite or flame retardant materials available
High fiber density
Superior crush resistance
All section water blocking
Excellent transmission, mechanical and environmental performance
Easy installation, easy maintenance
Lifespan over 30 years
Direct-buried installation
Duct installation
Backbone network and metro network
Access network
CATV network
Min. bend radius: installation 25D, operation 12.5D
Temperature range: storage -40～+70℃, installation -30～+70℃, operation -40～+70℃
