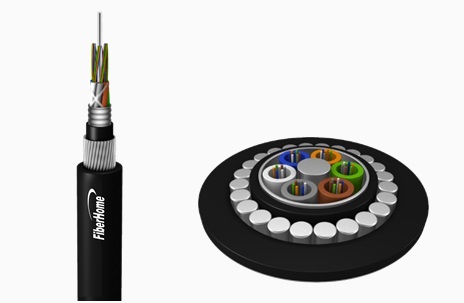

The loose tubes are made of high modulus plastics (PBT) and filled with water resistant filling gel. Loose tubes are stranded around the metallic central strength member, cable core is filled with cable filling compound. The corrugated aluminum tape is longitudinally applied over the cable core, and combined with polyethylene (PE) inner sheath. Galvanized steel wires are stranded around inner sheath, and then extruded with PE outer sheath.
Central strength member: FRP available
Loose tube: PP or other materials available
Water blocking materials for loose tube: water blocking yarn available
Water blocking materials for cable core: water blocking tape available
Outer sheath: aluminium tape armor, steel tape armor, anti-termite or flame retardant materials available
Excellent transmission, mechanical and environmental performance
Superior crush resistance and tensile strength performance
Applicable to harsh environment
Lifespan over 30 years
Underwater installation (lake, river etc.)
Direct-buried installation
Duct installation
Backbone network and metro network
Min. bend radius: installation 25D, operation 12.5D
Temperature range: storage -40～+70℃, installation -30～+70℃, operation -40～+70℃
