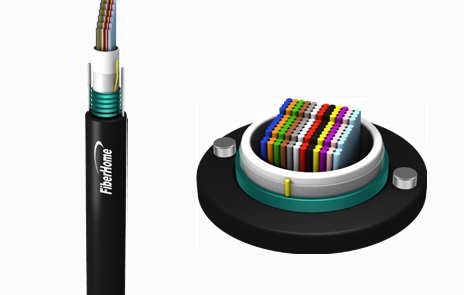

The fiber ribbons are positioned in the loose tube. The tube is made of high modulus plastics (PBT) and filled with water resistant filling gel. The corrugated steel tape is longitudinally applied over the loose tube, and combined with a durable polyethylene (PE) sheath. Two parallel steel wires are embedded in two sides of PE sheath.
Loose tube: PP or other materials available
Water blocking materials for loose tube: water blocking yarn available
Water blocking materials for cable core: cable filling compound available
Outer sheath: Anti-termite or flame retardant materials available
High fiber density
All section water blocking
Flexible, superior crush resistance
Excellent transmission, mechanical and environmental performance
Easy identification, easy branching, easy maintenance
Lifespan over 30 years
Duct installation
Access network
CATV network
Min. bend radius: installation 20D, operation 10D
Temperature range: storage -40～+70℃, installation -30～+70℃, operation -40～+70℃
