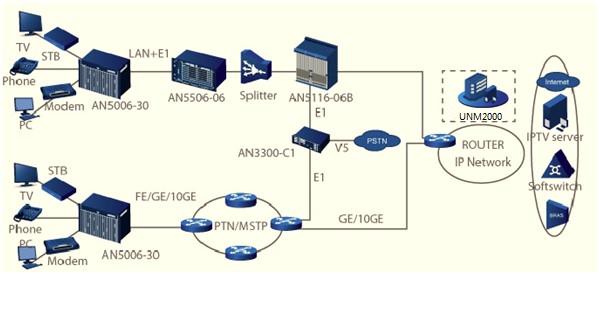

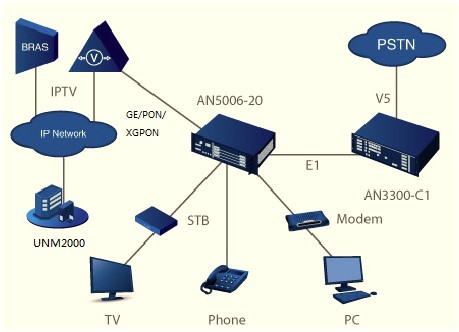

In needs for telecommunication operators, government companies and enterprise customers, FiberHome complete series of flexible MDU products are used to provide integrated broad-band and narrow-band access services. FiberHome Flexible MDU products provide ADSL2+/VDSL2/E1/POTS/G.SHDSL interfaces, support high speed internet access /IPTV services, etc., and also support V5/SIP/H.248 voice protocols to be seamlessly connected to PSTN/NGN/IMS networks.
Superior quality and large capacity of single cabinet, which provides up to 1024 lines and 16 service slots
Versatile interfaces such as uplink interfaces of FE/GE/XGE/E1/GPON/XGPON etc., and user interfaces of ADSL/ADSL2+/ G.SHDSL/ POTS etc., and FE/GE/XGE management interface/ -48 DC power supply interface
Flexible solution with PSTN voice service, pure XDSL data service and Triple Play etc
Compatible in MSAN/GPON/XGPON network. Smoothly upgraded to PON/XG PON network by replacement of PON/XG PON uplink card.
Perfect voice access function and voice processing protocols like SIP, H.248, etc.
With perfect multicast function, IGMP V2/V3 is supported at both user side and network side interfaces of the equipment, so that a flexible multi-cast solution can be achieved for the customer.
With flexible QinQ VLAN function, strong VLAN stacking and VLAN translation functions are provided, so that user’s services can be managed effectively and network security improved.
Provide strong QoS and guarantees end to end QoS solution for the whole network.
Perfect security mechanisms, designed with carrier-class reliability, which and can fully guarantee the security of subscriber`s services.
|
Type |
AN5006-20 |
AN5006-30 |
AN5220 |
|
H/W/D |
88mm×486mm×253mm |
335mm×444.8mm×267.75mm |
88mm×442mm×253.3mm |
|
Network Interface |
E1/GPON/XGPON |
E1/GPON/XGPON |
GPON/XGPON |
|
FE/GE/10GE |
FE/GE/10GE |
FE/GE/10GE |
|
|
User Interface |
POTS/ADSL2+/VDSL2/G.SHDSL/E1 |
POTS/ADSL2+/VDSL2/G.SHDSL |
VDSL2/POTS/GE/FE/SHDSL/ADSL2+/ISDN |
|
Power Supply |
AC：220V DC：-48V |
DC：-48V |
DC：-48V |
|
Power Consumption |
<300w |
<1300W |
<240w |
|
Anti-lightning |
6KV |
6KV |
6KV |
|
Operation Temperature |
-30℃～55℃ |
-10℃～55℃ |
-30℃～55℃ |
|
Ambient Humidity |
Non-condensing, 10%～95% |
Non-condensing, 10%～95% |
Non-condensing, 10%～95% |
|
Weight (Fully Configured) |
12kg |
29.1kg |
12kg |
