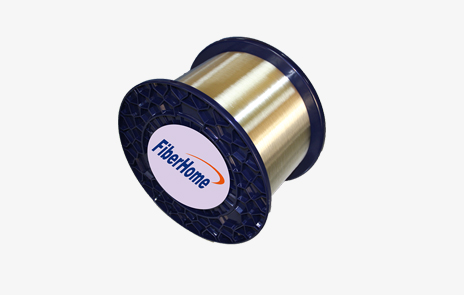

Another in FiberHome’s long line of innovative optical fiber products, FiberHome® ULL optical fiber has lower loss with maximum attenuation available to 0.17dB/km at 1550nm and it is an ITU-T G652.D compliant optical fiber.
Additionally, FiberHome® ULL optical fiber has the lowest PMD which featuring a ≤0.04 ps/√km PMDQ link design specification.
These features provide spare network margin that can be leveraged to extend network span lengths, amplift sites, upgrade to faster bit rates, add network components for improved flexibility, and lengthen the distance between regenerators.
As a result, long-haul and metropolitan network are scalable for the higher capacities required to meet the ever-increasing global demand for bandwidth.
|
Attribute |
Unit |
ULL |
|
|
Transmission characteristics |
|||
|
Attenuation |
@1310nm |
dB/km |
≤0.31 |
|
@1550nm |
dB/km |
≤0.17 |
|
|
@1625nm |
dB/km |
≤0.20 |
|
|
Attenuation vs. Wavelength @1310nm (1285~1330nm) |
dB/km |
≤0.03 |
|
|
Attenuation vs. Wavelength @1550nm (1525~1575nm) |
dB/km |
≤0.02 |
|
|
Dispersion coefficient |
@1550nm |
ps/(nm·km) |
≤18 |
|
@1625nm |
ps/(nm·km) |
≤22 |
|
|
Zero dispersion wavelength |
nm |
1300～1324 |
|
|
Zero dispersion slope |
ps/(nm2·km) |
≤0.092 |
|
|
Mode field diameter (MFD) |
@1310nm |
μm |
9.2±0.4 |
|
@1550nm |
μm |
10.4±0.5 |
|
|
Cable cut-off wavelength λcc(nm) |
nm |
≤1260 |
|
|
Macrobending loss |
Φ30mm,10 turns, @1550nm/1625nm |
dB |
≤0.05/0.30 |
|
Φ20mm,1turn, @ 1550nm/1625nm |
dB |
≤0.3/1.0 |
|
|
PMD |
For fiber on the reel |
ps/km1/2 |
≤0.20 |
|
For link designed value |
ps/km1/2 |
≤0.10 |
|
|
Point discontinuity |
@1310nm |
dB |
≤0.05 |
|
@1550nm |
dB |
≤0.05 |
|
|
Dimensional characteristics |
|||
|
Cladding diameter |
μm |
125±0.7 |
|
|
Cladding non-circularity |
% |
≤0.60 |
|
|
Core-cladding concentricity error |
μm |
≤0.5 |
|
|
Coating diameter-uncolored |
μm |
245±7 |
|
|
Coating-cladding concentricity error |
μm |
≤12.0 |
|
|
Mechanical characteristics |
|||
|
Proof stress level |
GPa |
≥0.69 |
|
|
Coating strip force |
Average |
N |
1.0≤Fave≤5.0 |
|
Peak |
N |
1.3≤Fpeak≤8.9 |
|
|
Curl radius |
m |
≥4 |
|
|
Stress corrosion susceptibility parameter, nd |
/ |
≥20 |
|
|
Environmental characteristics |
|||
|
Damp heat(85℃, RH85%, 30 days) |
Additional attenuation @1550nm/ 1625nm |
dB/km |
≤0.03 |
|
Dry heat (85℃, 30 days) |
Additional attenuation @1550nm/ 1625nm |
dB/km |
≤0.03 |
|
Change of temperature(-60~+85℃) |
Additional attenuation @1550nm/ 1625nm |
dB/km |
≤0.03 |
|
Water immersion (23℃, 30 days) |
Additional attenuation @1550nm/ 1625nm |
dB/km |
≤0.03 |
|
Temperature-humidity cycling (-10~+85℃, 98%RH) |
Additional attenuation @1550nm/1625nm |
dB/km |
≤0.03 |
|
Delivery length |
|||
|
Delivery length |
Km/reel |
2.1～50.4 |
|
Thanks to its broad usable optical spectrum and outstanding optical performance, FiberHome® ULL optical fiber is the optimum choice that supports various applications such as Ethernet, internet protocol (IP), asynchronous transmission, synchronous optical network (SONET) and wavelength division multiplexing (WDM). FiberHome® ULL optical fiber provides wider bandwidth for backbone, metropolitan area and access networks. FiberHome® ULL optical fiber enables bandwidth demanding of multi-services like voice, digital and image transmission.
FiberHome® ULL optical fiber is applicable in all cable types including both outdoor cable and indoor cable, such as ribbon cable, loose tube stranded cable, slotted core cable, unitube cable and tight-buffer cable.
