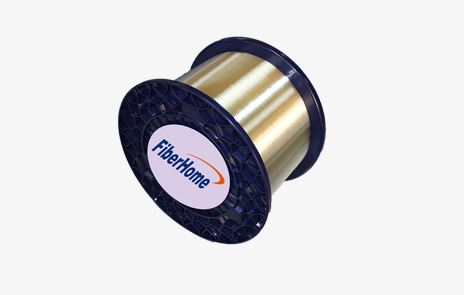

FiberHome® bending insensitive single-mode fiber encompasses all the features of low water peak dispersion unshifted single-mode fiber and provides good resistance to macro-bending. It has low macro-bending sensitivity and low water-peak level. It is comprehensively optimized for use in O-E-S-L band(1260-1625nm).
It offers good resistance to additional losses due to low macro-bending in the 1600nm wavelength region. This not only supports L-band applications but also allows for easy installation without excessive care when storing the fiber, for example, in splicing cassettes. For cable use inside buildings, the fiber supports installation with small cable bending radii and compact organizers. The bending induced loss at 1625nm no more than 0.5 dB for one wind with 10nm radius.
|
Attribute |
Unit |
G.657A1 |
G.657A2 |
G.657B3 |
|
|
Transmission characteristics |
|||||
|
Attenuation |
@1310nm |
dB/km |
≤0.35 |
||
|
@1383nm |
dB/km |
≤0.34 |
≤0.34 |
≤0.40 |
|
|
@1550nm |
dB/km |
≤0.22 |
≤0.22 |
≤0.21 |
|
|
@1625nm |
dB/km |
≤0.23 |
|||
|
Attenuation vs. Wavelength @1310nm (1285~1330nm) |
dB/km |
≤0.03 |
|||
|
Attenuation vs. Wavelength @1550nm (1525~1575nm) |
dB/km |
≤0.02 |
|||
|
Zero dispersion wavelength, 0 |
nm |
1300～1324 |
|||
|
Zero dispersion slope |
ps/(nm2·km) |
≤0.092 |
≤0.092 |
≤0.1 |
|
|
Mode field diameter (MFD) |
@1310nm |
μm |
8.7±0.4 |
8.7±0.4 |
8.6±0.4 |
|
@ 1550nm |
μm |
9.9±0.5 |
9.9±0.5 |
9.8±0.5 |
|
|
Cable cut-off wavelength λcc(nm) |
nm |
≤1260 |
|||
|
Macrobending loss |
Φ30mm,10 turns, @1550nm |
dB |
≤0.25 |
≤0.03 |
NS |
|
Φ30mm,10 turns, @1625nm |
dB |
≤1.0 |
≤0.1 |
NS |
|
|
Φ20mm,1 turn, @1550nm |
dB |
≤0.75 |
≤0.1 |
≤0.03 |
|
|
Φ20mm,1 turn, @1625nm |
dB |
≤1.5 |
≤0.2 |
≤0.1 |
|
|
Φ15mm,1 turn, @1550nm |
dB |
NS |
≤0.5 |
≤0.08 |
|
|
Φ15mm,1 turn, @1625nm |
dB |
NS |
≤1.0 |
≤0.25 |
|
|
Φ10mm,1 turn, @1550nm |
dB |
NS |
NS |
≤0.15 |
|
|
Φ10mm,1 turn, @1625nm |
dB |
NS |
NS |
≤0.45 |
|
|
PMD |
For fiber on the reel |
ps/km1/2 |
≤0.20 |
≤0.20 |
NS |
|
For link designed value |
ps/km1/2 |
≤0.10 |
≤0.10 |
NS |
|
|
Point discontinuity |
@1310nm |
dB |
≤0.05 |
||
|
@1550nm |
dB |
≤0.05 |
|||
|
Dimensional characteristics |
|||||
|
Cladding diameter |
μm |
125±0.7 |
|||
|
Cladding non-circularity |
% |
≤0.7 |
≤0.7 |
≤1.0 |
|
|
Core-cladding concentricity error |
μm |
≤0.5 |
|||
|
Coating diameter-uncolored |
μm |
245±10 |
|||
|
Coating-cladding concentricity error |
μm |
≤12.0 |
|||
|
Mechanical characteristics |
|||||
|
Proof stress level |
GPa |
≥0.69 |
|||
|
Coating strip force |
Average |
N |
1.0≤Fave≤5.0 |
||
|
Peak |
N |
1.3≤Fpeak≤8.9 |
|||
|
Curl radius |
m |
≥4 |
|||
|
Stress corrosion susceptibility parameter, nd |
/ |
≥20 |
|||
|
Environmental characteristics |
|||||
|
Damp heat (85℃, RH85%, 30 days) |
Additional attenuation @1550nm/1625nm |
dB/km |
≤0.03 |
≤0.03 |
≤0.05 |
|
Dry heat (85℃, 30 days) |
Additional attenuation @1550nm/1625nm |
dB/km |
≤0.03 |
≤0.03 |
≤0.05 |
|
Change of temperature (-60~+85℃) |
Additional attenuation @1550nm/1625nm |
dB/km |
≤0.03 |
≤0.03 |
≤0.05 |
|
Water immersion (23℃, 30 days) |
Additional attenuation @1550nm/1625nm |
dB/km |
≤0.03 |
≤0.03 |
≤0.05 |
|
Temperature-humidity cycling (-10~+85℃, 98%RH) |
Additional attenuation @1550nm/1625nm |
dB/km |
≤0.03 |
≤0.03 |
≤0.03 |
|
Delivery length |
|||||
|
Delivery length |
Km/reel |
2.1～50.4 |
|||
Short pitch cables for special application
High performance optical network operating in O-E-S-C-L band
High speed optical routes in buildings (FTTx)
Cables with low bending requirements
Low attenuation satisfying the operation demand in O-E-S-C-L band
Good bending loss resistance at short radius bends
Low micro-bending loss for highly demanding cable designs including ribbons
Low PMD satisfying high bit-rate and long distance transmission requirements
Accurate geometrical parameters that insure low slicing loss and high splicing efficiency
