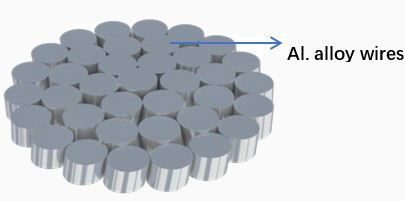

FiberHome AAAC consists of Al-Mg-Si alloy wires. Compared with AAC, AAAC shows lower density and higher tension strength. There is no magnetic reinforcement in AAAC, thus effectively reducing the conductor’s AC resistance, and improving the anti-corrosion performance.
-Max. RTS: 424 KN
-Max. cross section: 1439 mm2
-Min. DC Resistance at 20℃: 0.0231Ω/km
-Aluminum alloy 6201-T81 wires are in accordance with standard ASTM B 398/B 398M
-Medium strength
-High ration of draw weight
-Superior abrasion resistance
-Excellent anti-corrosion performance
-Suitable for large-span scenario
-Applicable to different voltage levels
-Installation bend radius: 20×D
-Temperature range: installation -10℃~+50℃
operation -40℃~+80℃
