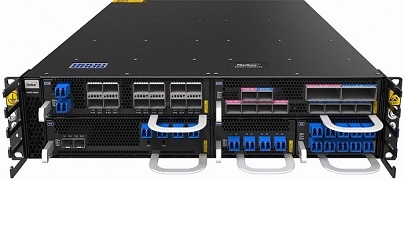

The FONST 1000 D2 provides an optical transmission system that features small-scale, high integration, low-power consumption, modularization and open style.
It applies to the interconnection and intercommunication among the data centers of Internet companies, carrier networks, enterprises, etc.
With a height of 2U, the FONST 1000 D2 can be installed in a cabinet of 19-inch-wide and no less than 800mm-deep.
10GE/40GE/100GE/400GE, 8GFC/10GFC/16GFC/32GFC, etc.
Applies to the equipment rooms of data centers. Supports air-in front and airout at rear, and support AC power supply.
Supports the forward error correction (FEC) function. A BER of less than 1E-12 is required (preferably less than 1E-15) between the 2 client interfaces of each xWDM link.
Supports various network models such as point-to-point.
The FONST 1000 D2 supports auto disconnection in case of overloaded voltage input to ensure normal operations of the equipment.
Applies to the ambient temperature ranging from 0℃ to 40℃.
The FONST 1000 D2 meets the requirements of the data center management.
Supports multiple types of open management interfaces.
The FONST 1000 D2 supports the UNM2000 developed by FiberHome.
Meets the requirements of the data center management. Supports multiple types of open management interfaces.

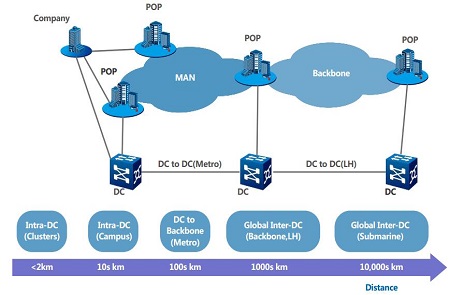

The typical application scenario of the FONST 1000 D2 is shown in the figure below.
Optical transmission among multiple data centers in one city, or from multiple data centers in one city to the POP.
Optical transmission among data centers in different cities, or long-haul optical transmission from data centers to the POP.
Reconstruction of the optical transmission system of the existing data centers. Multiple factors of the existing data center should be considered for the reconstruction such as equipment room space, power supply, transmission capacity, cost and technology.
Optical transmission among the IT or network devices inside a data center (the large-capacity data transmission inside one building or among different buildings in one area)
| Feature | Specifications |
| System transmission capacity | 12.8T |
| Service slot | 8 |
| Access service type | 10GE/40GE/100GE/400GE,8GFC/10GFC/16GFC/32GFC, etc |
| Management | Netconf/Yang model |
| CLI, SNMP | |
| AES-256 encryption | |
| TACACS for AAA | |
| RADIUS FOR AAA | |
| LLDP | |
| Management Interfaces | Rear, 4xRJ45, USB |
| Mechanical dimensions | 443 mm × 570 mm × 86.1 mm (W × D × H) |
| Operating Temperature | 0℃ to +40℃, long-term operation |
| -5℃ to +45℃, short-term operation |
