Fiberhome CiTRANS600 Series are new generation metropolitan optical transport network platform which are applied to packet transport network. The design is based on MPLS-TP architecture,uses PWE3 to emulate TDM services and Ethernet services via label-switching. CiTRANS600 series inherit high-efficiency of SDH in maintenance with easy and friendly GUI (graphical User Interface) NMS (Network Management System), and in the meanwhile support end-to-end hierarchical QoS scheduling and high-precision clock synchronization for operators and subscribers. As a memember of CiTRANS 600 product family, CiTRANS 690 series is one packet based，high capacity platform which using unified cell switching to provide mutil-service transmission. It is one high-end packet transmission platform, which can be used in aggregation/core/backbone,and the maximal capacity can reach up to 12.8T.

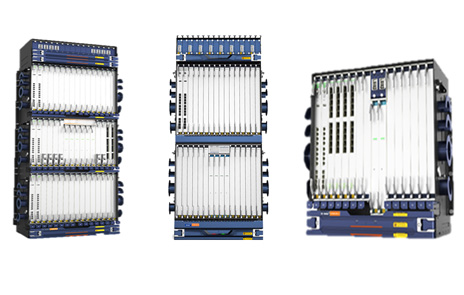

CiTRANS 690 series include CiTRANS 690 U10(2.56T) , CiTRANS 690 U20(7.68T) & CiTRANS 690 U30(12.8T) three type, support 100GE, 40GE, 10GE, GE, STM-1, etc. It can be used in LTE mobile backhaul core aggregation layer, and backbone layer.
Support multi-service non-blocking centralized switching
Flexible P&O transmission, any rate P or O function configuration, meeting the requirement for muti-service, high capacity and long distance transmission,100G per single slots.
PTN+OTN Protection Function, DNI-PW, MSRP
Smoothly upgradable to SDN
CiTRANS 690 series and other CiTRANS 600 series can realize the E2E solutions for bearer network, can provide service for MBH, OLT uplink, enterprise&government VPN and LL, can support multi-services for multiple scenarios
| Feature | Specifications | ||
| Specifications | U10 | U20 | U30 |
| Dimensions | 535mm(H)x566mm (W)x295mm(D) |
1152mm(H)x566mm (W)x295mm(D) |
1677mm(H)x566mm (W)x295mm(D) |
| Number of service slot | 12 | 26 | 40 |
| Number of wavelength (Max.) | DWDM:96 | DWDM:96 | DWDM:96 |
| Access capacity | Packet : 1.2T ODUk : 1.2T VC : 800G |
Packet : 5.2T ODUk : 5.2T VC : 1.92T |
Packet : 8T ODUk : 8T VC : 3.04T |
| Service interface | E1 CES,STM-1/4 CES, FE,GE,10GE,40GE,100GE E1,STM-1,STM-4,STM-16,STM-64 FC100/200/400/800/1200 OTU1,OTU2,OTU2e,OTU3,OTU4 |
||
| Protection | MPLS-TP LSP/PW APS , Wrapping , LAG/MC-LAG E1 TPS , STM-N RMSP/LMSP , VC SNCP , ODUk SNCP , OCP1+1 equipment level protection |
||
| Management and maintenance | Unified OTNM 2000&2100 management system Output interface: F, f, DEBUG, MBUS, MON, CTR, ALM, SYNC and etc |
||
| Operating temperature | -5 ~ 50°C | -5 ~ 50°C | -5 ~ 50°C |
