Fengine FIS5000 series switches are the first ruggedized compact switches developed by FiberHome for industry applications, such as manufacturing, power plant, mining, oil and gas, transportation, and other industrial work sites. The series is produced and con-forming to communication network system certification standards by IEC61850-3(substation) and standard for industrial applications of general purpose by IEEE1613 substation); the series have passed the certification test of State Grid Electric Power Research Institute. All the series are the preferred products satisfying digital substation system requirements. They also meet the application requirements of transport, railways and other industries.
FIS5000 is designed to provide users with easy networking configuration with different combination of 4-6 FE Ethernet ports and 2-4 FE optical ports, all of which made the ar-chitecture of the network more flexible and reliable. FIS5000 supports looped network redundancy protocol; switching and recovery time of network link are less than 50ms.
Improve the reliability of the network. FIS5000 support advanced network management functions; fully meet the operational needs of network management personnel.
The FIS5000 series products achieved IP40 industrial protection level for harden,
seal design and compatible with EMC level 4, for electromagnetic resistance,
working temperature ranging from - 40℃ to 85℃, power supply redundancy and provide 24V/110V/220v,
a variety of power types. FIS5000 is resistant from shock, moisture,
dust, salt fog and can work very well in all kinds of extreme industrial environment.
FIS5000 series switches adopt unique surface concave and convex technology for better heat dispassion,
to ensure the thermal diffusion for internal components in fan-free condition, so that the equipment can be stably working.
FIS5000 supports remote power-down equipment hardware and software alarm; configuration
and debugging of products can be made by web browser, Telnet, Console; FIS5000 supports
built-in diagnostics, network fault analysis and Investigation; alarm of abnormal events can be
made by Email, system voice notice and relay Automatic output.
Powerful network reliability
FIS5000 support looped network with redundancy protocols, including EAPS, RSTPI STP/MSTP,
etc.Switching and recovery time of network link are less than 50ms; millisecond switching delay improves the reliability of the network.

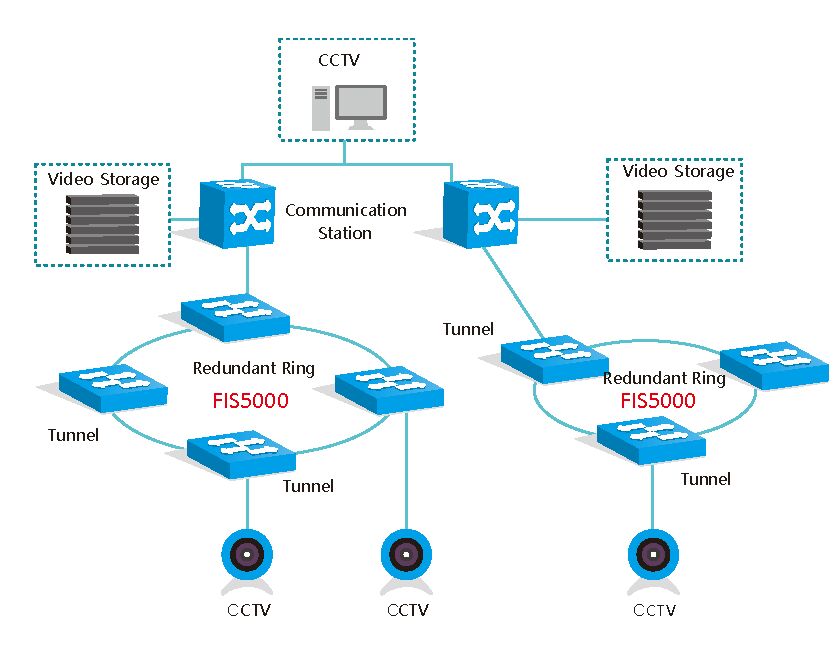

Road and bridge / tunnel using industrial-grade switches to fully guarantee the stability
of the equipment in harsh natural environment, and to ensure the quality of monitoring signals,
but also easy to network management. Using the fiberhome FIS5000 / FIS6000 industrial switch
network to ensure the stability of the network in harsh environments, high bandwidth, full wire-speed forwarding,
multi-interface for the future network business expansion reserved for adequate interface resources,
industrial design support equipment stable operation more than 10 years, effective protection of customer investment, reduce maintenance Costs.

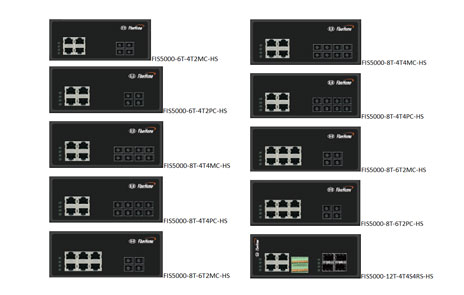

| Feature | FIS5000-6 T-4T2MC -HS |
FIS5000-6 T-4T2PC -HS |
FIS5000-8 T-4T4MC -HS |
FIS5000-8 T-4T4PC -HS |
FIS5000-8 T-6T2MC -HS |
FIS5000-8 T-6T2PC -HS |
FIS5000-12 T-4T4SRS -HS |
| Ports | 4x10/100 Base-Tx RJ45, 2x100 Base-Fx, SC multi-mode |
4x10/100 Base-Tx RJ45, 2x100 Base-Fx, SC single mode |
4x10/100 Base-Tx RJ45, 4x100 Base-Fx SC multi-mode |
4x10/100 Base-Tx RJ45, 4x100 Base-Fx SC single mode |
6x10/100 Base-Tx RJ45, 2x100 Base-Fx SC multi-mode |
6x10/100 Base-Tx RJ45, 2x100 Base-Fx SC single mode |
4x10/100 Base-Tx RJ45, 4x100 Base-Fx (Excluding optical module), 4xRS232/ RS485 serial ports |
| Jumbo frame | 2K | ||||||
| MAC address table | 8K | ||||||
| Certification | IP40, conforming to the power automation IEC 61850-3, IEEE1613 (substation), IEC61000-6-2 standards,EMI, EMC certified |
||||||
| VLAN | Port-based VLAN and IEEE based 802.1 Q VLAN,4KVLAN, VLAN ID range: VID 1-4094, QinQ | ||||||
| Reliability | EAPS, RSTP/STP/MSTPIEEE 802.1D, IEEE 802.1w, IEEE802.1s | ||||||
| Broadcast suppression |
Broadcast / Multicast / DLF storm control | ||||||
| Rate limit of port |
Egress and Ingress rate limiting with granularity at 64Kbps | ||||||
| Port mirroring |
Egress and Ingress traffic mirroring | ||||||
| QoS | ACL supported,802. 1p, DSCP ToS priority, 8 queues supported, 802. 1p, DSCP ToS priority, 4 queues supported, SP, PQ, WRR, DRR, SPD, WRR+SP(Hybrid) queue scheduling algorithm, FCFS based queue scheduling, MAC-based access list, IP ACL, VLAN, CoS, DCSP |
||||||
| Port trunk | IEEE 802.3ad,Static and dynamic trunk,14 trunk groups, each supports 8 ports. | ||||||
| Protocols | IGMP v1/v2/v3, GVRP, GVRP, SNMP v1/v2/v3, DHCP client, DHCP Option82, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog |
||||||
| Security and manage ment |
Hierarchical protection for commands to prevent unauthorized users from accessing the equipment, Port isolation, 802 .1X, Radius, DHCP Snooping, DHCP Option 82 |
||||||
| Mainten ance and manage ment |
SNMP v1/v2/v3, RMON1/2/3/9, SSH v1/v2, Telnet, Web and TFTP upgrade |
||||||
| Operating environment |
Operation temperature: -40℃ to +80℃(-40°F to +185°F) Humidity:5% to 95% |
||||||
| Input voltage | Worldwide ranging AC：90V to 264V Worldwide ranging DC：-12V to -60V |
||||||
| Dimensions mm (Width x height x depth) |
58x140x 125 | ||||||
Power cons umption |
≤11W typical | ||||||
| Weight | ≤2.5kg | ||||||
