Fengine FIS6000 series switches (FIS6000) are managed gigabit IES with multiple services and high performance and it complies with industrial standards such as the communica-tion network and system authentication standards of IEC 61850-3 transformer station, and the IEEE 1613 standards. FIS6000 fully meets the requirements of digital transformer sta-tion. FIS6000 series switches can be used to establish gigabit-Ethernet backbone networks and redundant rings. They can provide 24/48 VDC or 110/220 VDC/VAC redundant power input which makes the on-site power supply more flexible, and the exit for its line distribu-tion at the back of the service port is a design which complies with the requirements of the power system so that it can be widely applied in the industrial automation fields such as electrical power, transportation and power resources.
FIS6000’s modularized design, its 4 GE ports and 24 100M ports brings more flexible net-work. All kinds of advanced network management functions such as QoS, VLAN, IGMP snooping, link aggregation, SNMP V1/V2/V3, RSTP/STP and LLDP are supported. Thus the operation and management requirements of network managers are fully met. Its supports ring protection for 50ms resilience.
The FIS6000 series products achieved IP40 industrial protection level for harden,
seal design and compatible with EMC level 4, for electromagnetic resistance,
working temperature range from -40℃ ~ 85℃, power supply redundancy and
provide 110/220v, 24/48v/ a variety of power input types. FIS6000 is able to resistant
from shock moisture, dust, salt fog and can be stably worked in all kinds of extreme industrial environment.
FIS6000 series switches adopt unique surface concave and convex technology
for better heat dispassion, to ensure the thermal diffusion for internal components
in fan-free condition, so that the equipment can be stably working.
Besides STP/RSTP/MSTP protocols, the FIS6000 is able to support ring protection for 50ms network resilience.
FIS6000 also supports IEEE 802.1x authentication https, SSL to prevent insecure terminals to intrude into the entire network.
The loop protection function is added for effective broadcast storm.

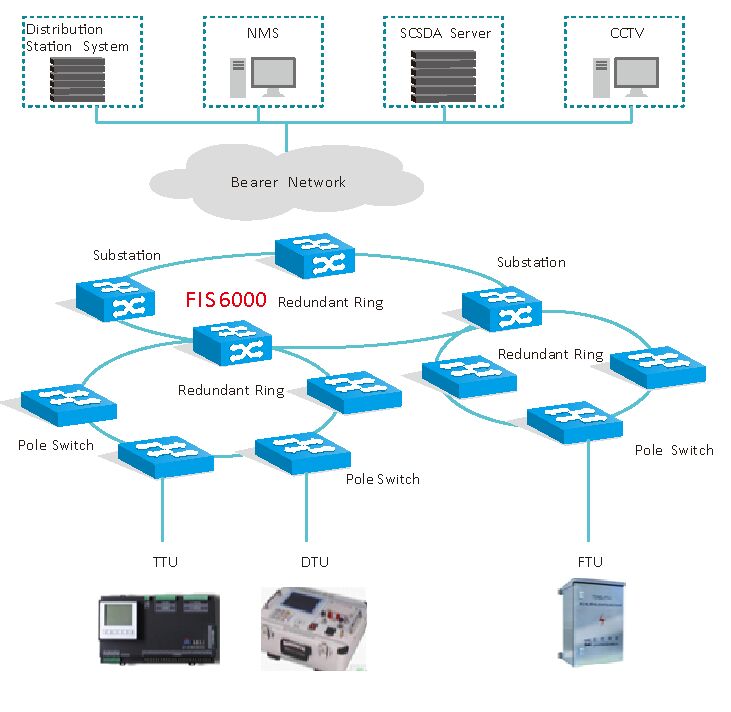

Network application: the use of a full two-tier ring network, in the access layer and convergence
layer deployment of ring network, using MSTP or private ring network protocol, ring switching time
is less than 50ms, to protect the network more secure and reliable.
| Feature | FIS6000-28T-4C-HR | FIS6000-28T-4C-HS |
| Ports | 3 slots,2 power slots | |
| MAC address table | 16K | 8K |
| Standards & certifications | IP40, IEC 61850-3 communication network and certification standard of transformer, station, and IEEE 1613, EMI, EMS |
|
| VLAN | 4k VLANs(IEEE 802.1Q), QinQ | |
| TRUNK | IEEE802.3ad LACP, static trunk | |
| 32 groups, each trunk group containing up to 8 ports |
14 groups, each trunk group containing up to 8 ports |
|
| Broadcast suppression | Broadcast/multicast/DLF storm control | |
| Rate limiting | Egress and Ingress rate limiting with granularity at 64Kbps | |
| Mirroring | Egress and Ingress traffic mirroring | |
| QoS/ACL | 802.1p priorities with 8 queues | 802.1p priorities with 4 queues |
| Flexible scheduling algorithms, including SP,PQ, WRR, DRR, SPED, SP+WRR(hybrid), FCFS MAC/IP/VLAN/COS/DCSP based QoS |
||
| Protocols | IGMP V1/2/3, PIM-DM/SM, DVMRP, GMRP, GVRP, DHCP Client, DHCP Option82, SNMP V1/2C/3, TFTP, SNTP. SMTP. RMON, HTTP, Telnet, SSH, Syslog |
|
| Layer 3 protocols as static routing, policy routing, RIPv1v2, OSPFv2, BGPv4 |
N/A | |
| Reliability | STP(IEEE 802.1d), RSTP(IEEE 802.1w), MSTP(IEEE 802.1s) | |
| EAPS | ||
| Security & management | Hierarchical protection for commands to prevent unauthorized users from accessing the equipment, Port isolation, 802.1x, Radius, DHCP Snooping, DHCP Option 82, SNMPv1/v2/v3, RMON groups(history, statistics, alarms and events), SSHv1, SSHv2, Telect, Web management, Upgrade via TFTP |
|
| Operating environment | Operation temperature: -40℃ to +80℃(-40°F to +176°F) Humidity:5% to 95% |
|
| Power spec | Dual feed power supply available | |
| Input voltage: Worldwide ranging AC: 90V to 264V Worldwide ranging DC: -12V to -60V |
||
| Dimensions (W×H×D）mm | 436×44×315 | |
| Power consumption | ≤45W typical | |
| Weight | ≤5kg | |
