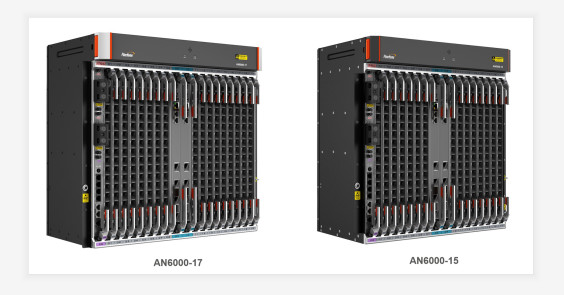

AN6000-17/AN6000-15 are the next generation OLT platform which have ultra broadband capability for PON smooth evolution.Their distributed architecture design can suppot high density GPON, XG(S)-PON, XG(S)-PON Combo, TWDM-PON, WDM-PON and P2P card, will bring higher bandwidth and enhance capacity for access network. Cloudization and virtualization can also be implemented on them. All of these will improve user experience, reduce long-term investment and maintenance costs of operators.
Reliable Hardware Design
Mounted in 19”or 21”rack, satisfying indoor or outdoor deployment.
High reliability and redundancy design to ensure system reliability and green design.
Help reduce equipment power consumption and noise emission.
High Overall Performance
High-density xPON service card, satisfying the high-density subscription requirement.
Tbps level switching capacity and 4*10GE/GE uplink ports integrated in core & control card, 8*10GE/GE or 1*100GE per independent uplink card.
Supporting type B/C protection switching in PON port and LACP/MSTP/ERPS protocol in network side to ensure network reliability.
Time and clock synchronization, supporting 1588V2, SYNC-E and 1PPS+TOD.
Support L3 protocols OSPF,BGP,IS-IS,etc,and MPLS.
Support SDN/NFV architecture, facing the cloud network.
Distributed architecture design.
Integrated access of Multiple PON Technology
Supporting GPON/EPON/XG(S)-PON/XG(S)-PON COMBO/AGILE PON access.
Smooth evolution to NG-PON. Integrating TWDM-PON and WDM-PON technology in one chassis, co-existent with existing ODN network.
|
Type |
AN6000-17 |
AN6000-15 |
|
Dimensions of the subrack H/W/D |
486mm x 530 mm x 284 mm |
486 mm x 480 mm x 282 mm |
|
Weight of empty subrack (Including the FAN) |
19 kg |
16.65 kg |
|
User-side Interface |
GPON/XG(S)-PON/XG(S) Combo/TWDM-PON/WDM-PON/P2P |
|
|
Power Supply |
DC -48V |
|
|
Service Slots |
17 |
15 |
