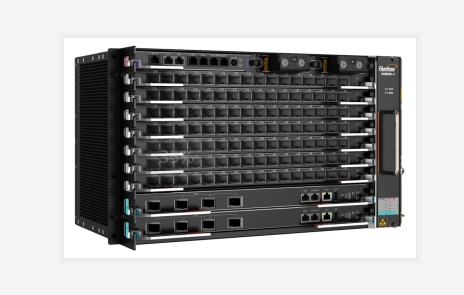

AN6000-7 is the next generation OLT platform which has ultra broadband access capability for PON smooth evolution. It is a carrier-class optical line equipment which can be applied to access scenarios for moderate subscription density. Its distributed architecture design can support high density GPON, XG(S)-PON, XG(S)-PON Combo, TWDM-PON, WDM-PON and P2P card, it will bring about higher bandwidth and Medium capacity for access network. This can help save the deployment cost of telecom operator and brings them more profit.
Reliable Hardware Design
Mounted in standard 21” or 19” anti-dust cabinet；Supporting indoor or outdoor deployment.
Environmentally-friendly design；Low power consumption and recyclable materials.
Help reduce equipment power consumption and noise emission.
High Overall Performance
Tbps level switching capacity and 4*10GE/GE uplink ports integrated in core & control card, 8*10GE/GE or 1*100GE per independent uplink card.
Supporting type B/C protection switching in PON port and LACP/MSTP/ERPS protocol in network side to ensure network reliability.
Capability of supporting split-ratio up to 1:128/1:256 long haul transmission and CLASS B+/C+/C++/N1 optical modules.
ISSU function guarantees the service will not be interrupted during the upgrade.
Time and clock synchronization, support SyncE,1588v2 and 1PPS+ToD.
Support SDN/NFV architecture, facing the cloud network.
Support L3 protocols OSPF, BGP, IS-IS, etc,and MPLS.
Distributed architecture design.
Integrated access of Multiple PON Technology
Smooth evolution to NG-PON. Integrating TWDM-PON and WDM-PON technology in one chassis, co-existent with existing ODN network.
Carrier-class PON platform with high density access, up to 112 GPON, XG(S)-PON, XG(S)-PON combo ports per chassis.
|
Type |
AN6000-7 |
|
Dimensions of the subrack H/W/D |
266mm x 480mm x 254mm |
|
Weight of empty subrack (Including the FAN) |
10.7 kg |
|
User-side Interface |
GPON/XG(S)-PON/XG(S) Combo/TWDM-PON/WDM-PON/P2P |
|
Power Supply |
DC -48V |
|
Service Slots |
7 |
