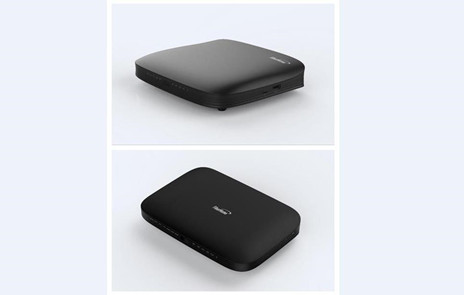

FiberHome PON uplink Combo CPE integrates high-definition set-top box, intelligent home gateway and WIFI into one box, which can provide data, video, voice and WIFI service to the user.
Combo CPE has dual-core, dual system and dual-CPU parallel processing, using Android system to support massive applications and greatly expanding the device functions. It is the main product for the broadband operation and management, and its main customer is hotels, shops and home users.
Rich Hardware Interface
— Support GPON uplink interface
— Support video , voice , Bluetooth , interface
— Support SATA,USB extend storage interface
— Support 802.11b/g/n/ac/ax Wi-Fi
Perfect Experience
— WiFi repeating
— Phone remote control
— One-key network configuration
— One-key speed test
— Device diagnose
— Guest Wi-Fi
— Parents control
High Performance-price Ratio
— Multi-Product integration, lower down the product cost
— one-key activate and diagnose, lower down the operate & maintenance cost
— Compact product bulk, lower down the warehousing and logistics cost
Opened Service Interface
— Android OS, strong extending capability
— Online Video Surveillance service interface
— Voice, video message service interface
— Video meeting service interface
— Home storage service interface
|
|
MR622-KK |
MR628-SF |
|
Memory |
ONU: 256MB STB: 1GB DDR3 |
ONU: DDR3, up to 512MB STB: 2GB DDR4 |
|
Flash |
ONU: Nand 128MB STB: 8GB EMMC |
ONU: Nand, up to 256MB STB: 8GB EMMC |
|
WIFI |
Built-in WiFi 2.4G IEEE802.11b/g/n 2T2R |
2T2R, IEEE 802.11ac/ax dual-band Wi-Fi |
|
Media Parameter |
Video Decoding: H.26x up to 4K x 2K@60 fps MPEG-1/2 MP/HL up to 1080P@60fps MPEG-4 ASP@L5 up to 1080P@60fps AVS-P16(AVS+) up to 1080P@60fps RealVideo 8/9/10 up to 1080P@60fp VP6/VP8/VP9 up to 1080p@60fp Video Encoding: H.26x video encoding up to 1080P@60fps encoding Support FLV/AVI/M4V/MKV/MOV/MP4/RMVB/TS/MPG/WMV/JPG |
Video Decoding: H.26x up to 4K x 2K@60 fps VP9 Profile-2 up to 4Kx2K@60fps MPEG-1/2 MP/HL up to 1080P@60fps MPEG-4 ASP@L5 up to 1080P@60fps WMV/VC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps AVS2-P2 Profile up to 4Kx2K@60fps RealVideo 8/9/10 up to 1080P@60fps Video Encoding: H.26x video encoding up to 1080P@60fps encoding Support MKV/WMV/MPG/MPEG/DAT/AVI/MOV/ISO/MP4/RM/JPG |
|
Interface |
HDMI: 1 * HDMI2.0a AV: 1 * RCA Mini Slot (3.5mm) USB: 2 * USB2.0 MicroSD Slot: 1 * TF Card Slot Uplink Port: 1 * GPON Network: 1* GE + 1* FE LAN POTS: 1 * POTS Power Supply: 1 * Power Supply Slot, DC 12V/1.5A Reset: 1 * Reset Slot |
HDMI: 1 * HDMI2.1 AV: 1 * RCA Mini Slot (3.5mm) SPDIF: 1 * SPDIF USB: 1 * USB2.0 +1* USB3.0 MicroSD Slot: 1 * TF Card Slot Uplink Port: 1 * GPON Network: 3* GE LAN POTS: 1 * YD/T 1054-2000 Blue Tooth: BT4.2 Power Supply: 1 * Power Supply Slot, DC 12V/1A Reset: 1 * Reset Slot |
