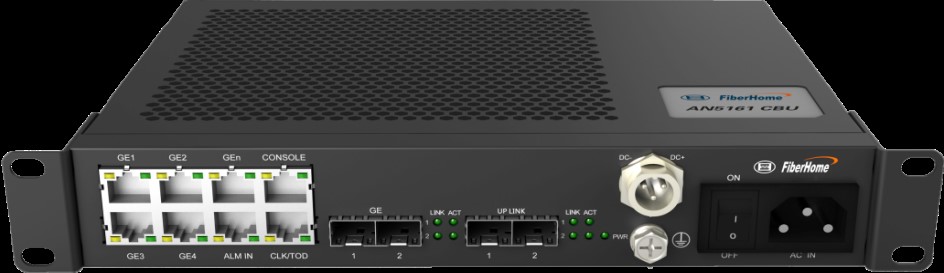

AN5161 is industry-leading Cellular Backhaul Units (CBU), which provide mobile backhaul service on fiber to the mobile (FTTM) network. The AN5161/AN5506-06G is box-type devices with GPON/GE uplink and GE user interface, which are low power consumption, passive cooling design, high stability, eco-friendly and low energy consumption for family users as well as small to medium-scale enterprises along with easy installation and maintenance.
6*GE auto-adapting port : 4 copper+ 2 optical；

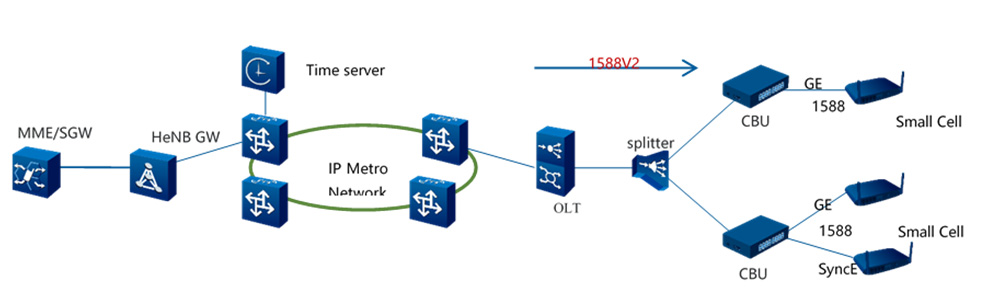

Precision clock & phase synchronization：support SyncE & 1588v2, capable of small cell backhaul；
High QoS：ensure delay & packet loss requirements using hierarchy QoS；
Plug and play：off-line provision, support remote configuration, upgrading and diagnosis
Fan less design : lower noise and power consumption；
Carrier grade design：reliability consideration during hardware, software and system design
|
PON features |
Comply with ITU G.984/IEEE 802.3ah standards |
|
Broadband features |
4K VLAN, supporting QinQ, VLAN 1:1 and N:1 translation |
|
16K MAC addresses |
|
|
Dual management modes based on DBA technology |
|
|
ACL rules filtering and unknown unicast, broadcast and multicast packets suppression |
|
|
Multicast features |
IGMPv2 and IGMPv3 |
|
IGMP proxy and Snooping |
|
|
A maximum of 1024 configurable multicast |
|
|
Clock features |
Sync-Ethernet &1588v2 |
|
1pps+ToD& 2M clock output |
|
|
Reliability features |
Type B/C PON protection |
|
PPPoE+ and DHCP option82 |
|
|
Triple churning/AES-128 algorithm to downstream data encryption |
|
|
Supports MAC/IP address filtering and binding functions |
|
|
Anti-DOS attack and firewall |
|
|
Line loopback detection |
|
|
Maintenance features |
Remote upgrade and monitoring |
