FiberHome Fithaul IPRAN solution is an end-to-end solution for 5G fronthaul, midhaul and backhaul network. It adopts the unified platform and the combination of Segment Routing, EVPN, High-precision time synchronization, network slicing, SDN and other technologies to provide ultra-large bandwidth, low latency, high-precision time synchronization and intelligent network management and control to meet the challenges of 5G network. FiberHome 5G IPRAN product family cover all network layers to meet differentiated demands of different 5G scenarios and 5G services.

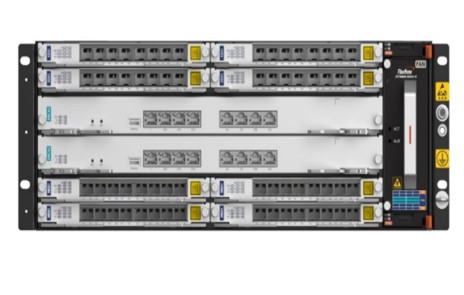

As a member of FiberHome Fithaul IPRAN Solution, CiTRANS R850 series can be deployed as access node or aggregation node in Metropolitan Area Network (MAN). CiTRANS 850 series are high-capacity router that delivered (Unidirectional) of non-blocking forwarding with affluent TDM/Ethernet interface (100GE at maximum).
CiTRANS R850 supports unidirectional Tbits cross-connection capacity, and its space saving design can be installed in the 300mm depth cabinet and outdoor cabinet
Based on FiberHome in-house NP chipset, the power consumption is as low as 0.5W/Gbit, meeting the energy saving requirements and saving customers OPEX.
The intelligent fan unit provides excellent and flexible heat dissipation can simply conquer the challenges caused by harsh environment both high and low temperature.
Dynamic routing protocol such as RIP/OSPF/IS-IS/BGP；
Supports IPv6 static routing, OSPFv3, BGP4+, RIPng, IS-ISv6, SRv6, SRv6 Policy；
TCP/IP protocol includes ICMP/IP/TCP/UDP/ARP；
Supports ITU-T G.8275.1, IEEE 1588v2 and Ethernet clock to meet the requirements of MBH；
Supports LSP tunnel created via manual configuration or LDP, RSVP-TE or SR protocol.
With distributed hardware forwarding and non-blocking switching technology, CiTRANS R850 supports L2/L3 access and forwarding for multi-type service；
Supports L2VPN based on Martini protocol VPWS and VPLS；
Supports L3VPN based on MPLS/MBGP protocol: dynamically distribute VPN routes and VPN labels；
Support EVPN L2VPN and L3VPN；
Supports Inter-AS VPN Option A, Option B and Option C；
Supports PWE3 to simulate different media service；
Provides perfect H-QoS mechanism (including Traffic Classification, Traffic Policing, Queue Scheduling, Congestion Avoidance, Traffic Shaping)；
Supports IP multicast service based on IGMP, PIM-SM/DM, Static multicast group etc；
ITU-T G.8275.1, IEEE 1588V2 and Ethernet clock to satisfy the requirements of MBH
Meets carrier multicast requirements with multicast CAC, IPv6/IPv4 unicast/multicast, multicast routing, BGP, IGP and multicast fast convergence
Support Flex-E slicing
FiberHome UMC2 is the unified solution of management and control, providing Fast end-to-end service provisioning, bandwidth adjustment in real-time and Business configuration, reservation business, bandwidth adjustment, bandwidth calendar and other functions by using APP
With flexible networking capability, perfect reliability design, and excellent service protection ability etc. It is an ideal choice for 5G mobile backhaul, IP Metro and other IP network applications.
|
Feature |
Specifications |
||
|
Model |
R850-6 |
R850-8 |
R850-10 |
|
Access capacity |
240G |
800G |
480G |
|
Maximum interface capability |
100GE:2 50GE:4 25GE:8 10GE:26 GE: 32 FE: 32 STM-1: 32 E1: 128 |
100GE:8 50GE:16 25GE:32 10GE:80 GE: 48 FE:48 STM-1: 48 E1: 192 |
100GE:4 50GE:8 25GE:16 10GE:50 GE: 48 FE: 48 STM-1: 32 E1: 192 |
|
Interface synchronization processing |
External Clock Interface:1PPS+TOD All physical ports can extract the clock information via sync E, Ethernet ports support 1588V2. |
||
|
Hardware redundancy |
Important card redundancy (including routing control card, switching card, power card, etc.), All important cards support hot backup |
||
|
Physical dimensions |
Height: 133mm (5.23 in.) Depth: 227mm (8.93 in.) Width: 442mm (17.40 in.) standard 19-inch equipment rack, 12-inch depth |
Height: 155mm (6.1 in.) Depth: 232mm (9.13 in.) Width: 442mm (17.40 in.) standard 19-inch equipment rack, 12-inch depth |
Height: 222mm (8.74 in.) Depth: 227mm (8.93 in.) Width: 442mm (17.40 in.) standard 19-inch equipment rack, 12-inch depth |
|
Input voltage |
Worldwide ranging DC: -48±20%V |
Worldwide ranging DC: -48±20%V |
Worldwide ranging DC: -48±20%V |
|
Maximum Power consumption |
700W |
700W |
900W |
|
Weight |
4.5kg |
6.8kg |
7.6kg |
|
Operating temperature |
-40℃to +65℃ |
-40℃to +65℃ |
-40℃to +65℃ |
|
Relative humidity |
Long term: 5％ to 85％ Short term: 5％ to 90% |
Long term: 5％ to 85％ Short term: 5％ to 90% |
Long term: 5％ to 85％ Short term: 5％ to 90% |
|
Operation altitude |
Lower than 4000 m (13123.2 ft) |
||
|
Electromagnetic compatibility standards |
ETSI EN 300 386, EN 55022, EN55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, CISPR 22, CISPR 24, ITU-T K.20, ITU-T K.21, ITU-T K.43, ITU-T K.44 |
||
|
Safety standards |
EN 60825-1, EN 60825-2, EN 60950-1, IEC 60825-1, IEC 60825-2, IEC 60950, UL 60950-1 |
||
